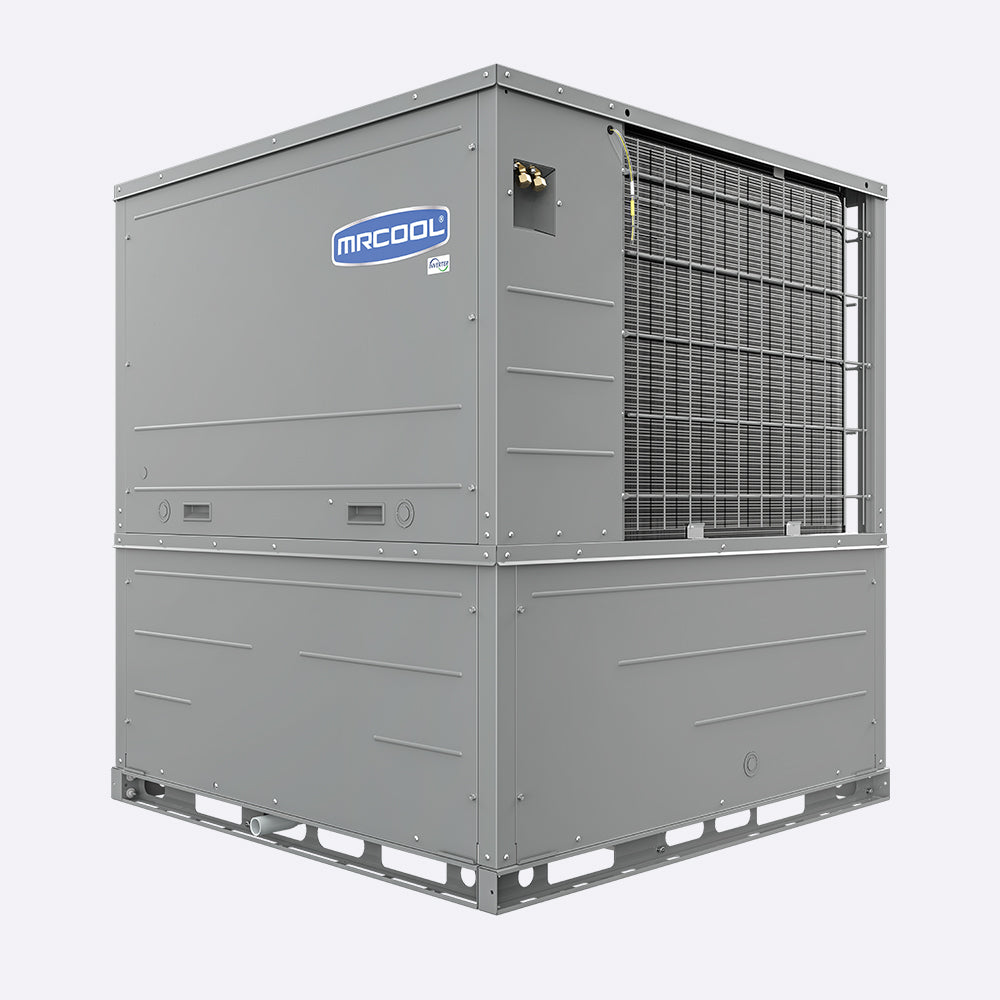

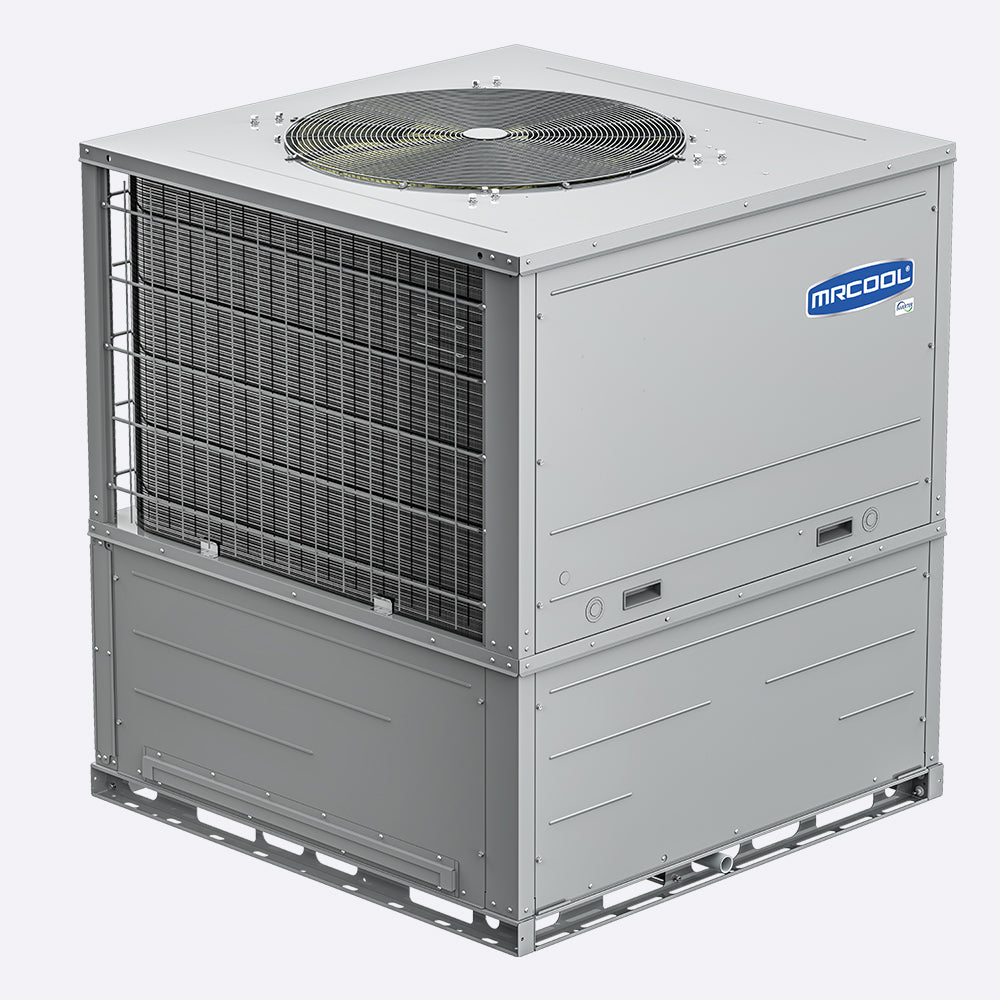

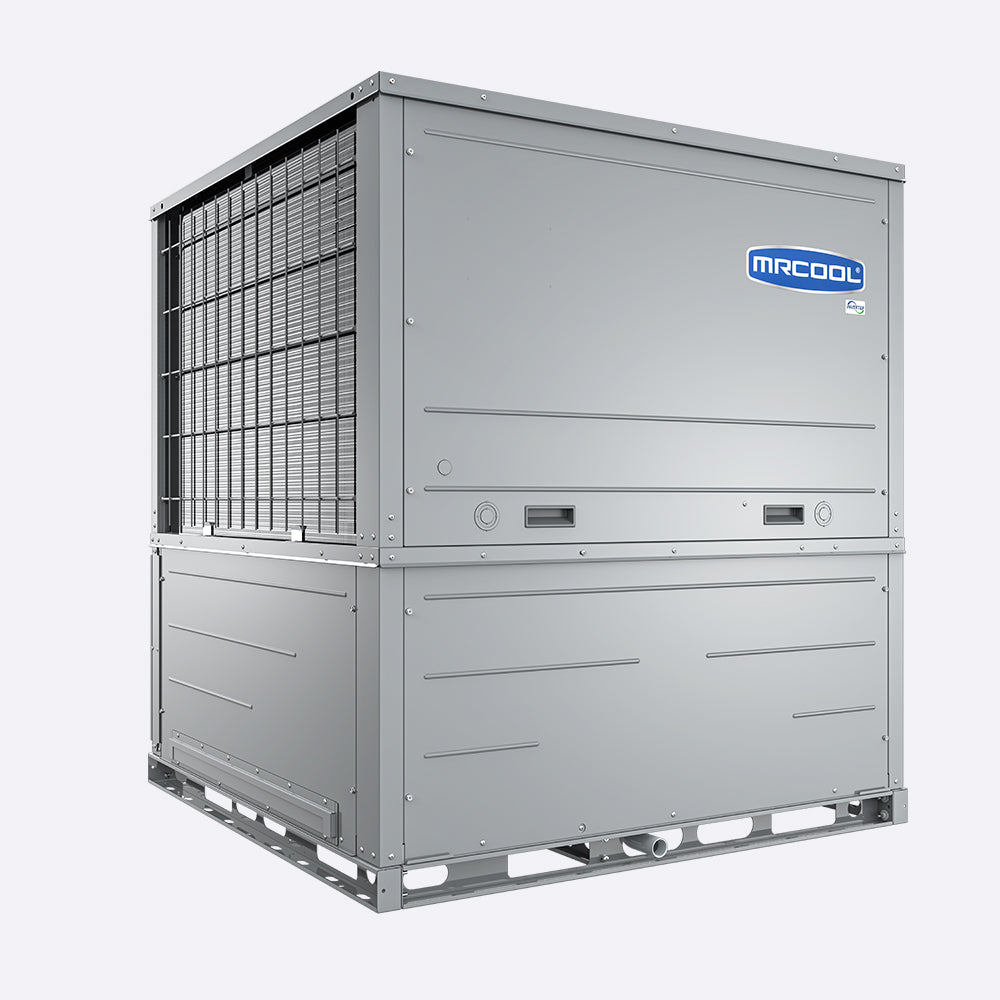

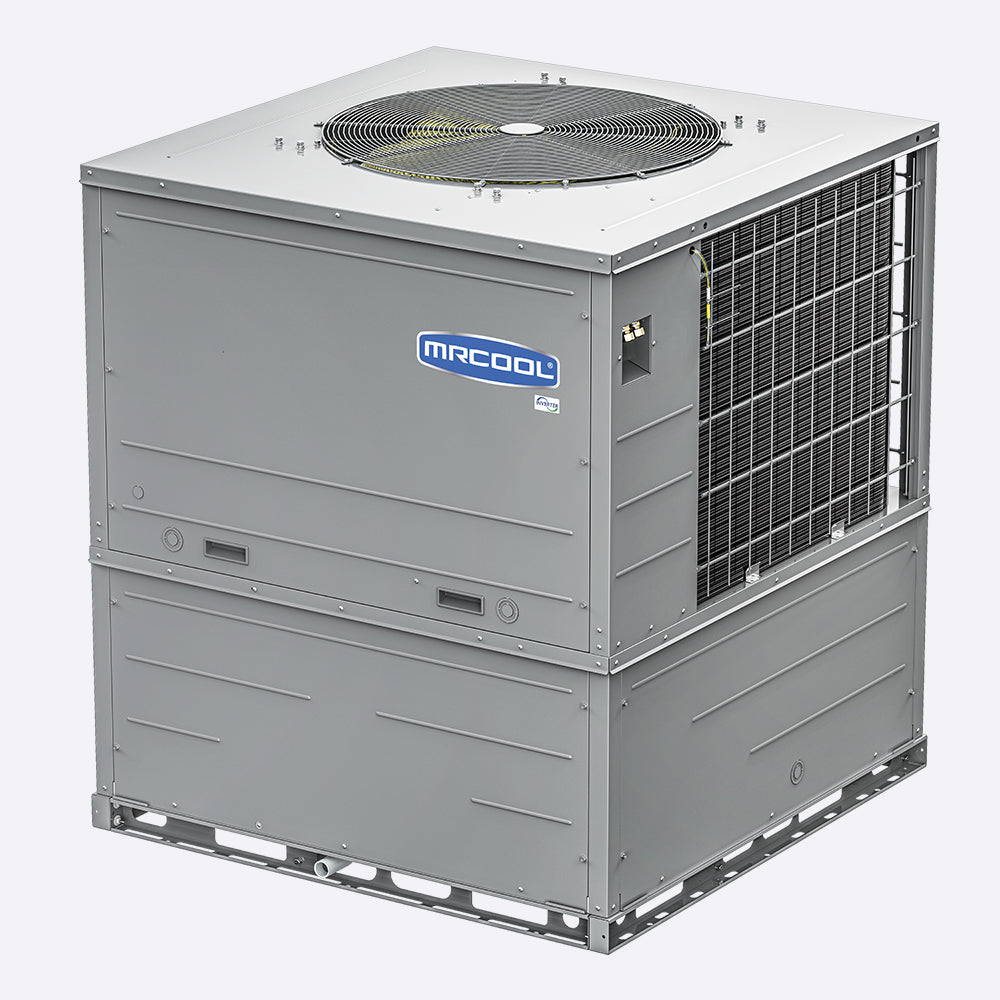

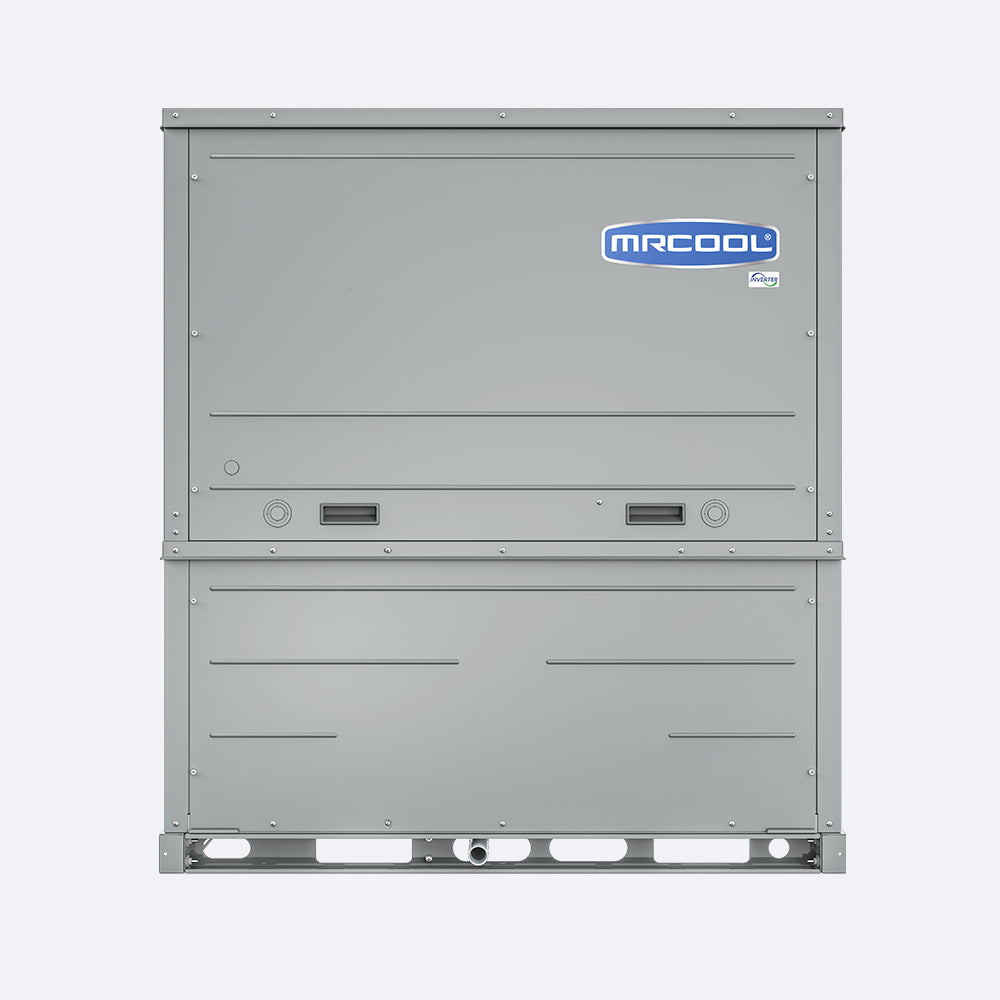

MRCOOL® 60k BTU 17 SEER2 Universal DC Inverter Packaged Heat Pump-R410A
Free Shipping
Warranty Protection
Trusted Returns Policy
MODEL: MDPH180604
Powerful, Eco-Friendly Whole-Home Climate Control in One Seamless System
The MRCOOL® Universal 60k BTU DC Inverter Packaged Heat Pump delivers advanced, high-capacity heating and cooling in one compact, all-electric outdoor unit—eliminating the need for fossil fuels. Designed for large residential and light commercial spaces, this 5-ton system operates efficiently across extreme climates, from -22°F to 125°F, using variable-speed inverter technology to minimize energy consumption, reduce noise, and maintain steady comfort.
Engineered for flexibility, the unit features both side and bottom air return configurations for traditional or rooftop installation. Intelligent defrosting ensures reliable winter heating, while an optional auxiliary heat kit offers additional backup when needed. Enjoy 10-year warranties on parts, compressor, and labor—with no registration required.
Whether upgrading your HVAC or building new, this ENERGY STAR® certified system brings maximum performance with minimal impact on your energy bill—and the planet.
Why Installers Choose It
✅ 60,000 BTU Heating & Cooling – Ideal for large residential or commercial installations
✅ DC Inverter Compressor – Adapts to climate loads for ultra-efficient operation
✅ -22°F to 125°F Operating Range – Year-round reliability in extreme temperatures
✅ Flexible Installation – Side or bottom air return + rooftop compatibility
✅ Low Noise Design – Quiet rotary inverter motor and soft startup
✅ Optional Heat Kits – Compatible with 5kW, 10kW, 15kW, and 20kW kits
✅ 10-Year Warranty – Labor, parts, and compressor all covered
Specifications
Specifications at a Glance
| Attribute | Details |
|---|---|
| Equipment Type | Packaged Heat Pump |
| Tonnage | 5 Ton |
| BTU (Cooling/Heating) | 56,000 / 57,000 |
| Voltage / Phase / Cycle | 208–230V / 1 Phase / 60Hz |
| SEER2 / EER2 / HSPF2 | 17 / 10.6 / 8.3 |
| Refrigerant Type | R410A (236.4 oz) |
| Compressor Type | DC Inverter Rotary |
| Operating Temp | -22°F to 125°F |
| Sound Rating | 68–78 dBA |
| Filter Type | Washable Aluminum |
| Filter Size | 29 5/16" x 13 1/4" x 3/5" |
| Auxiliary Heater | Optional (5kW–20kW compatible) |
| WiFi Compatible | No |
| Energy Star Certified | ✅ Yes |
| AHRI Certified | ✅ Yes |
| Warranty | 10 Years (Parts, Compressor, Labor) |
What’s Included
-
MRCOOL® MDPH180604 60k BTU DC Inverter Packaged Heat Pump
-
Wired Thermostat
-
Washable Aluminum Filter
- Comprehensive 10-Year Warranty Coverage
Installation
⚠️ Professional installation required. Proper sizing, electrical setup, and refrigerant line management must be performed by a licensed HVAC technician for optimal performance and warranty coverage.
