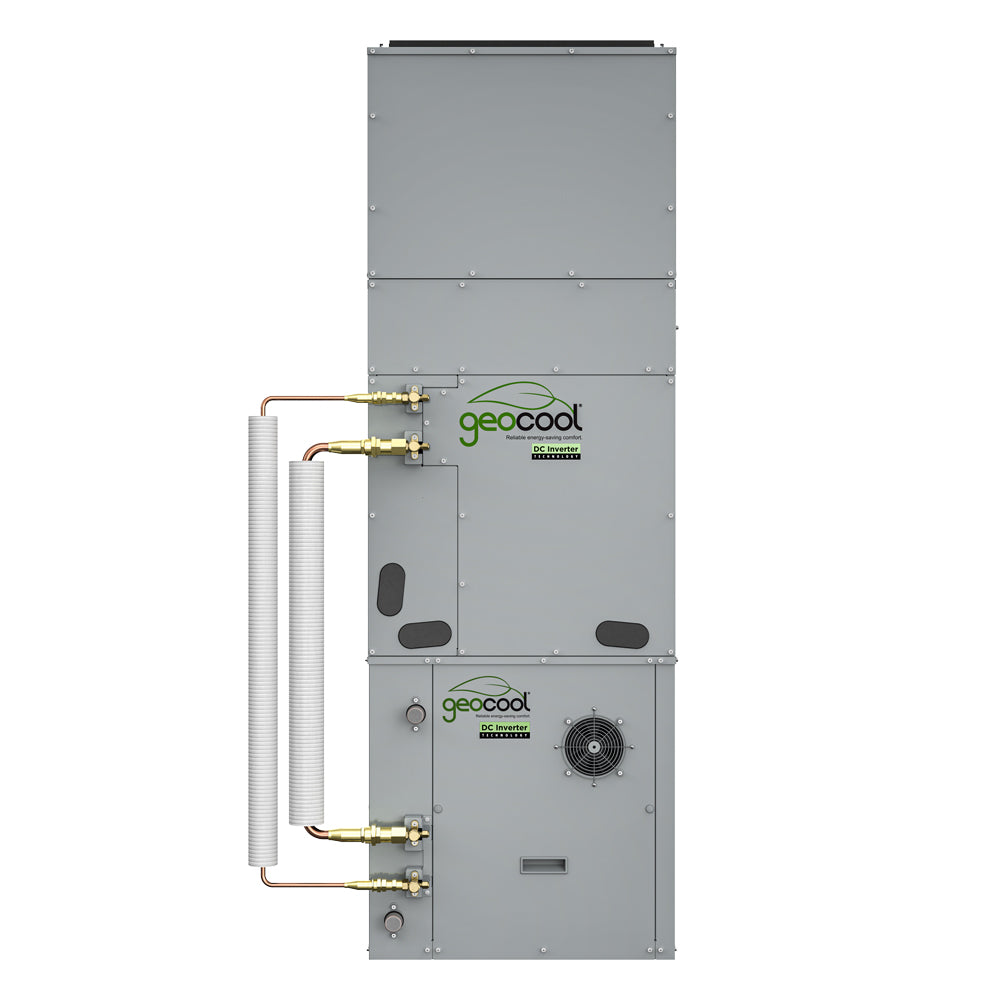

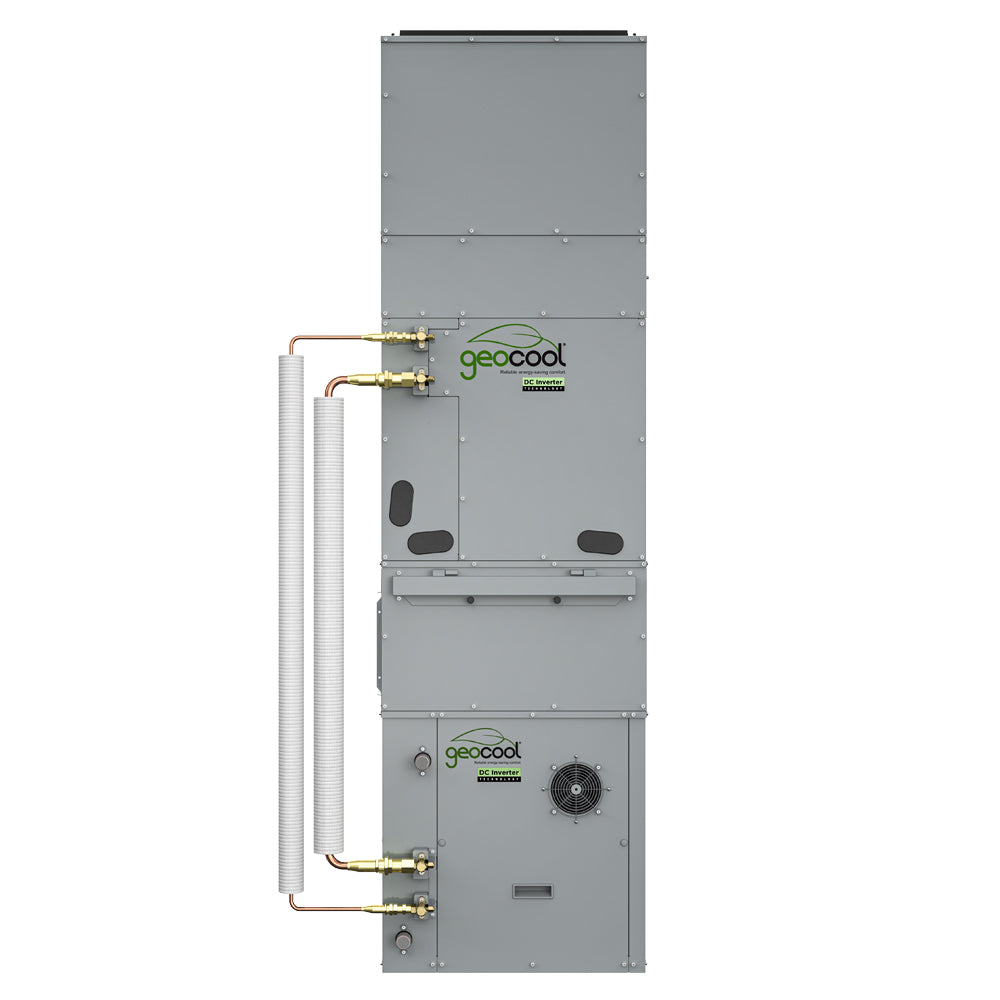

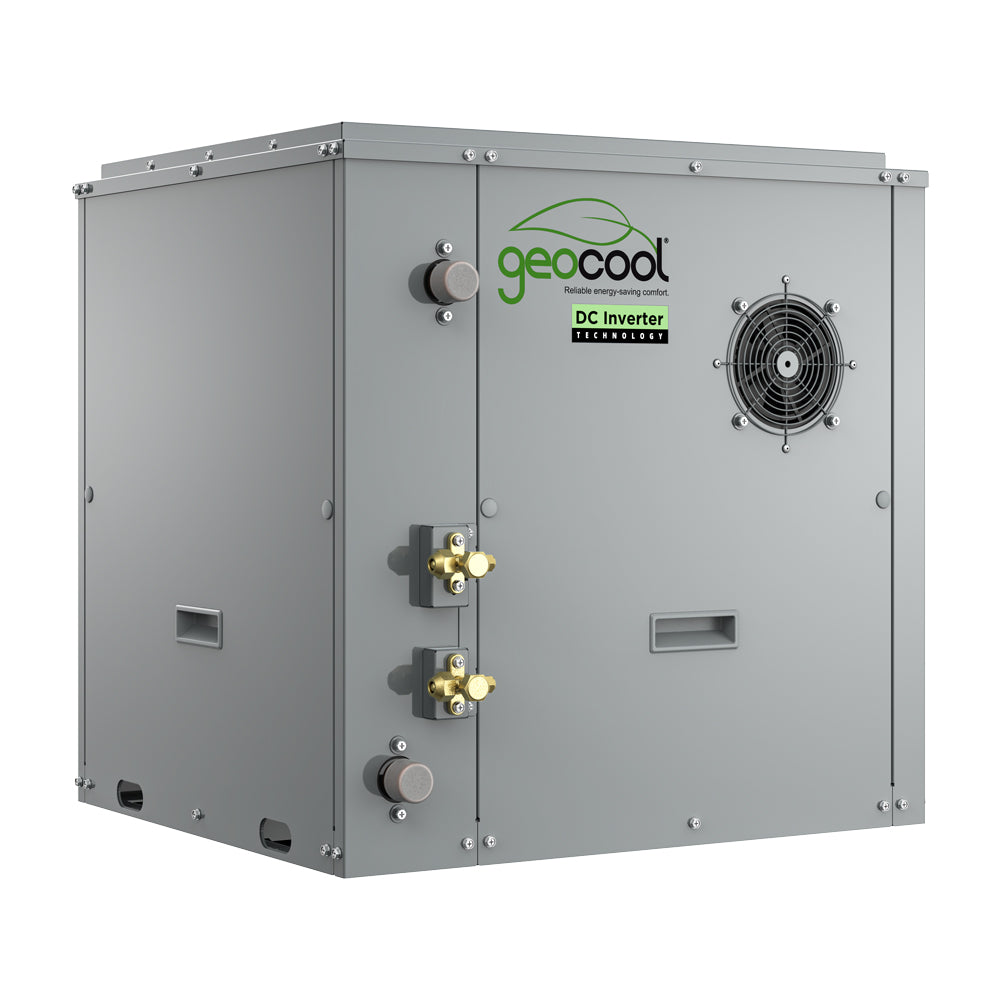

GeoCool 60K BTU 5T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor
MODEL: GCSHPM060IN
Product Description
GeoCool® Inverter Series 60,000 BTU (5 Ton) Geothermal Heat Pump – GCSHPM060IN | 230V, 1-Phase, DC Inverter Compressor
Powerhouse Performance with Next-Level Geothermal Efficiency
Meet the GeoCool® GCSHPM060IN, a 5-ton geothermal heat pump compressor designed to deliver ultra-efficient, whisper-quiet, whole-home comfort. Engineered with an all-DC inverter system and high-precision electronic expansion valve (EEV), this system delivers unmatched temperature control, lower energy costs, and smoother operation across every season.
With an EER rating of up to 70, this ENERGY STAR® certified geothermal unit surpasses traditional HVAC systems in both efficiency and longevity. The multi-positional design allows flexible installation—whether vertical, horizontal, or split—making it ideal for tight spaces or custom duct layouts. Enhanced with a durable co-axial copper-nickel heat exchanger, it handles harsh water conditions with corrosion resistance and long-term reliability.
Paired with MRCOOL®’s No-Vac® line set and installed by a licensed professional, this system is the ultimate eco-friendly, high-performance heating and cooling solution.
Why Homeowners & Contractors Choose It
✅ Massive 5-Ton Capacity – Delivers up to 62,000 BTU cooling and 55,600 BTU heating
✅ Up to 70 EER Efficiency – One of the most energy-efficient geothermal systems available

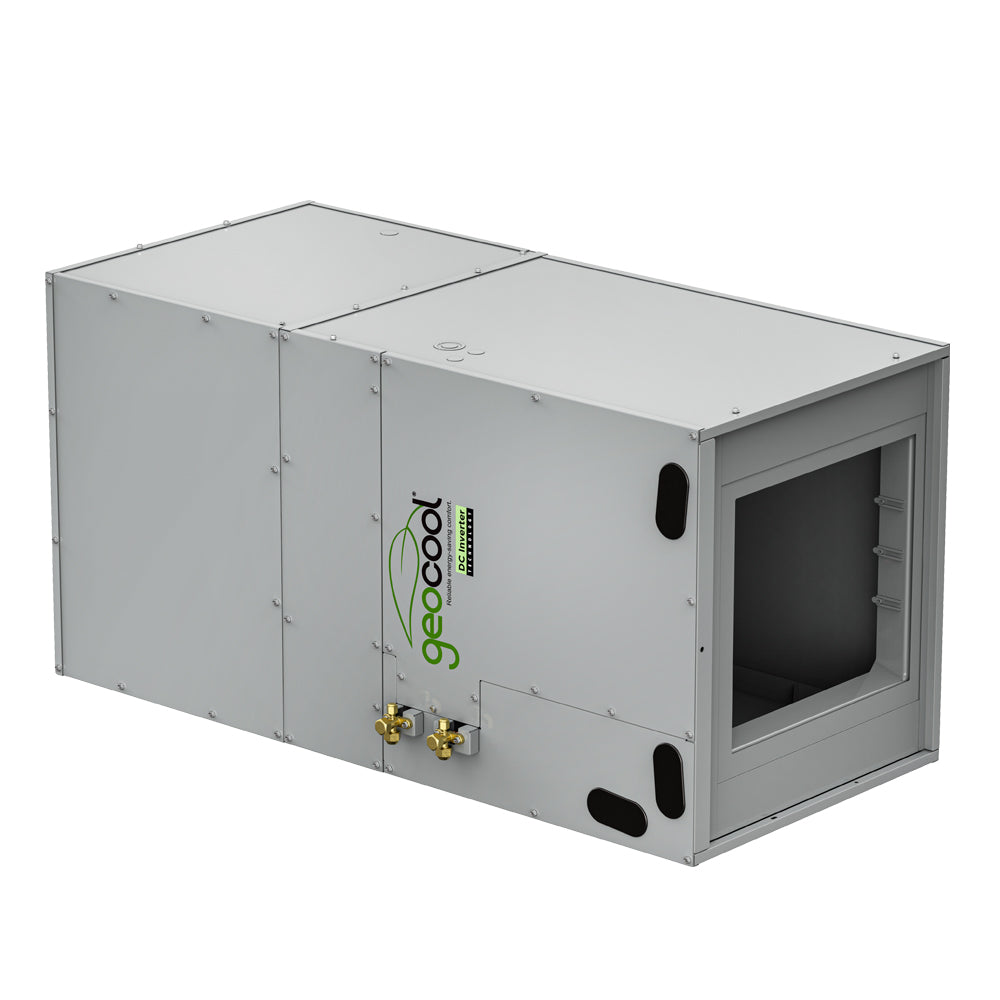

✅ Multi-Positional Flexibility – Install vertically, horizontally, or split to suit your space
✅ Quiet Operation – Noise levels as low as 58 dB(A) cooling and 60 dB(A) heating
✅ Built for Durability – Copper-nickel heat exchanger improves corrosion resistance
✅ No-Vac® Line Set Compatible – Simplifies refrigerant connection during install
✅ Smart Long-Term Investment – Reduced utility bills and low maintenance costs
✅ Backed by Warranty – 10-Year Parts, 5-Year Limited Labor (with registration)
What’s Included:
- GeoCool® GCSHPM060IN 5-Ton Geothermal Compressor Unit
-
High-Precision Electronic Expansion Valve (EEV)
-
Pre-charged R-410A Refrigerant
-
Professional Installation Hardware
-
AHRI & ENERGY STAR Certification Documents
-
Warranty Registration Instructions
Specifications at a Glance
| Attribute | Details |
|---|---|
| Voltage | 208 / 230V, 1-Phase, 60Hz |
| Cooling Capacity (BTU) | Up to 62,000 |
| Heating Capacity (BTU) | Up to 55,600 |
| EER (Up To) | 70 |
| Compressor Type | Rotary DC Inverter |
| Configuration | Multi-Positional |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Refrigerant Type | R-410A |
| Max Fuse Breaker | 35 Amps |
| Min Circuit Ampacity | 26 Amps |
| Overload Protection | Yes |
| Dimensions (Net, in) | 22.44 D × 24.80 W × 25.12 H |
| Dimensions (Gross, in) | 27.56 D × 28.54 W × 30.71 H |
| Weight (Net/Gross, lbs) | 231.53 / 254 |
| Energy Certifications | ✅ ENERGY STAR, ✅ AHRI, ✅ UL Listed |
| Warranty (Registered) | 10-Year Parts / 5-Year Limited Labor |
| Color | Gray |
| Installation Requirement | Licensed geothermal contractor required |
