GeoCool® 5-Ton Closed Loop Geothermal Installation Kit w/ Straight Manifold

MODEL: GCIK-CL5T-SM

Professional-Grade Ground Loop Kit for 5-Ton GeoCool® Geothermal Systems

The GeoCool® GCIK-CL5T-SM Closed Loop Installation Kit delivers everything needed for a clean, efficient 5-ton geothermal system install. Built around a straight 5-circuit insulated manifold, this kit includes 3,000 feet of CenFuse SDR 11 HDPE pipe, a dual-pump flow center, geothermal hose kit, and ProTek PG Plus glycol solution—all selected for long-lasting reliability and high thermal performance.

Ideal for residential or light commercial installations, the straight manifold configuration provides easy access and organized system layouts, especially in mechanical rooms where space efficiency matters. Compatible with all 5-ton GeoCool® Inverter Series geothermal systems.

Why Installers Choose It

✅ Complete 5-Ton Kit – Pre-bundled with everything needed for loop field installation

✅ 3,000 ft of CenFuse SDR 11 Pipe – Long-lasting, underground-rated HDPE loop pipe

✅ Straight 5-Circuit Header – Pre-insulated and optimized for mechanical room installations

✅ Dual-Pump Flow Center – Supports strong fluid circulation across large systems

✅ Flexible Hose Kit Included – Quick and secure MPT-to-barb elbow connections

✅ ProTek PG Plus Glycol (5 Gal) – Protects against freezing and ensures efficient thermal transfer

✅ GeoCool® Ready – Fully compatible with 5-ton GeoCool® geothermal systems

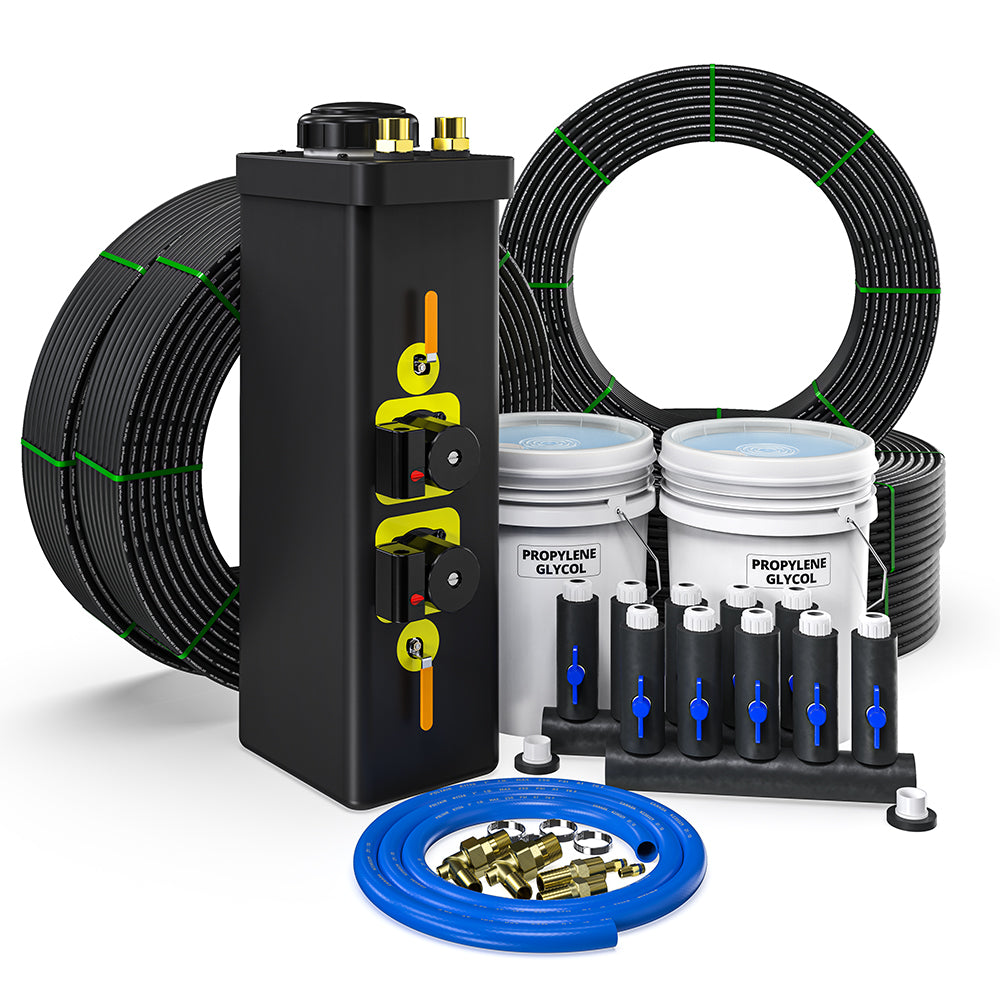

What’s Included:

• (5) Rolls of 3/4" x 600' CenFuse SDR 11 HDPE Loop Pipe

• (1) 1-1/4" x 3/4" 5-Circuit Straight Insulated Header

• (1) Geo-Pulse Non-Pressurized Flow Center – Dual Pump

• (1) 1" x 12' Geothermal Hose Kit with MPT to Barb 90° Elbow Adapters

• (1) 5-Gallon Bucket of ProTek PG Plus Propylene Glycol Heat Transfer Fluid


Specifications

Specifications at a Glance

Attribute	Details
Equipment Type	Closed Loop Installation Kit
System Size Compatibility	5 Ton
Configuration	Straight Header
Pipe Type	3/4" CenFuse SDR 11 HDPE
Pipe Quantity	5 Rolls × 600 ft (3,000 ft total)
Flow Center	Geo-Pulse Non-Pressurized, Dual Pump
Header Type	5-Circuit, 1-1/4" × 3/4", Insulated, Straight
Hose Kit	1" x 12' w/ MPT to 90° Barb Elbow Adapters
Heat Transfer Fluid	(1) 5-Gal Bucket, ProTek PG Plus Glycol
Proposition 65	⚠️ Yes

Installation

⚠️ Professional installation required. Loop design, pressure testing, and flow setup must be performed by a licensed geothermal HVAC contractor for optimal performance and warranty coverage.
