GeoCool® 5-Ton Closed Loop Geothermal Installation Kit w/ Angled Manifold
MODEL: GCIK-CL5T-AM
Product Description
Complete 5-Ton Ground Loop Kit for GeoCool® Geothermal Systems
The GeoCool® GCIK-CL5T-AM Closed Loop Installation Kit delivers everything you need for a professional-grade 5-ton geothermal ground loop install. Pre-bundled with top-quality components—including CenFuse SDR 11 pipe, a dual-pump flow center, angled manifold, hose kit, and heat transfer fluid—this kit ensures a fast, code-compliant, and high-efficiency installation.
Built for use with GeoCool® Inverter Series systems, this configuration is optimized for closed-loop geothermal systems, ensuring reliable fluid circulation, thermal transfer, and long-lasting performance in residential or light commercial settings.
Why Contractors Choose This Kit
✅ All-in-One Kit for 5 Ton Installs – No guesswork, no piecing parts from multiple suppliers
✅ 3,000 ft of SDR 11 CenFuse HDPE Pipe – Trusted for underground geothermal loop fields
✅ Angled 5-Circuit Header – Pre-insulated, space-efficient manifold configuration
✅ Geo-Pulse Dual Pump Flow Center – Efficient, non-pressurized fluid circulation system
✅ Geothermal Hose Kit Included – Secure, flexible connections between system components
✅ 5 Gallons of ProTek PG Plus Glycol – Protects loop system year-round with superior heat transfer
✅ Engineered for Performance – Fully compatible with GeoCool® inverter systems

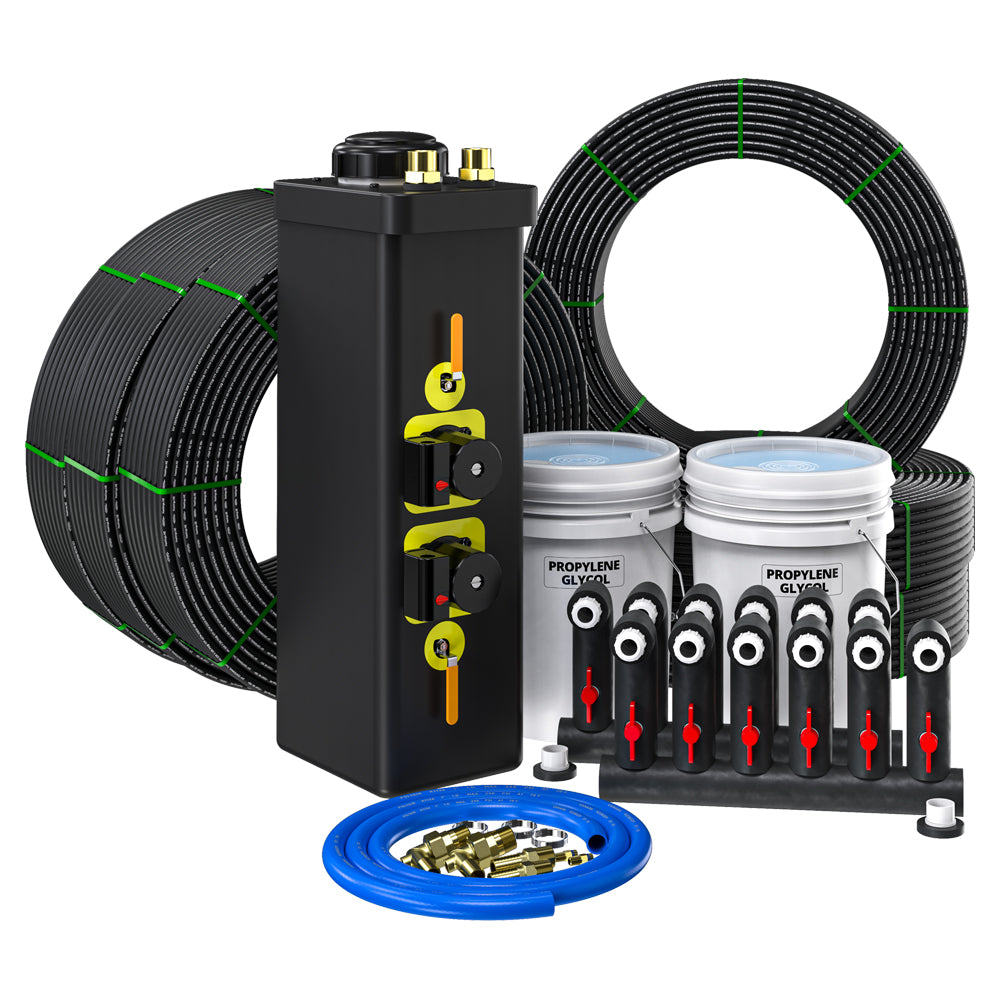

What’s Included:
- (5) Rolls of 3/4" x 600' CenFuse SDR 11 HDPE Loop Pipe
-
(1) 1-1/4" x 3/4" 5-Circuit Insulated Header – Angled Pattern
- (1) Geo-Pulse Dual Pump, Non-Pressurized Flow Center
-
(1) 1" x 12' Geothermal Hose Kit with MPT to Barb 90° Elbow Adapters
-
(1) 5-Gallon Bucket of ProTek PG Plus Propylene Glycol Heat Transfer Fluid
Specifications at a Glance
| Attribute | Details |
|---|---|
| Equipment Type | Closed Loop Installation Kit |
| System Size Compatibility | 5 Ton |
| Configuration | Angled Header |
| Pipe Type | 3/4" CenFuse SDR 11 HDPE |
| Pipe Quantity | 5 Rolls × 600 ft (3,000 ft total) |
| Flow Center | Geo-Pulse Non-Pressurized, Dual Pump |
| Header Type | 5-Circuit, 1-1/4" × 3/4", Insulated, Angled |
| Hose Kit | 1" x 12' w/ MPT to 90° Barb Elbow Adapters |
| Heat Transfer Fluid | (1) 5-Gal Bucket, ProTek PG Plus Glycol |
| Proposition 65 | ⚠️ Yes |
Installation Notes
⚠️ For use with GeoCool® geothermal systems only. Professional HVAC installation is required to ensure proper system function, code compliance, and warranty activation.
