GeoCool® 3-Ton Closed Loop Geothermal Installation Kit – Straight Manifold

MODEL: GCIK-CL3T-SM

Efficient Ground Loop Kit for 3-Ton GeoCool® Geothermal Installations

The GeoCool® Closed Loop Installation Kit (3 Ton, Straight Manifold) is a precision-engineered solution for hassle-free geothermal system setup. Designed for contractors and eco-conscious homeowners, this comprehensive kit ensures a professional-quality installation while maximizing energy efficiency and system longevity.

Ideal for residential geothermal projects, this 3-ton bundle includes rugged CenFuse® SDR 11 loop pipe, a straight 3-circuit insulated header, and a reliable Geo-Pulse™ non-pressurized single-pump flow center. Paired with a durable hose kit and ProTek PG Plus antifreeze, this all-in-one solution simplifies the installation process, reduces labor time, and improves overall performance—even in challenging climates.

Why Installers Choose It

✅ Turnkey 3-Ton Kit – All key components included for loop field setup

✅ 1,800 ft of CenFuse® SDR 11 Pipe – UV- and corrosion-resistant underground HDPE pipe

✅ Straight 3-Circuit Header – Pre-insulated and ideal for vertical install configurations

✅ Single-Pump Flow Center – Compact, non-pressurized design for residential systems

✅ Pre-Fitted Hose Kit – MPT to barb 90° elbow adapters for fast connection

✅ ProTek PG Plus Glycol – 5-gallon thermal transfer fluid protects from freeze damage

✅ Perfect Fit for GeoCool® – Seamlessly integrates with 3-ton GeoCool® systems

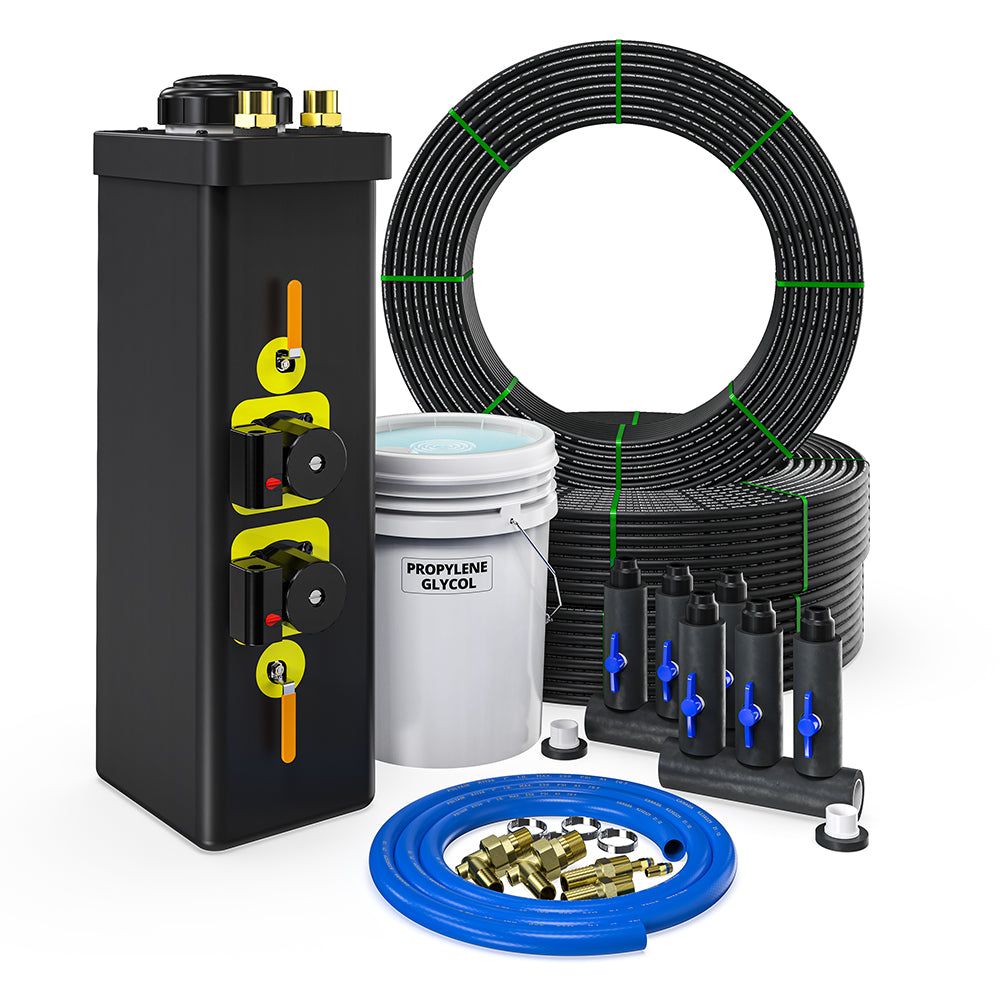

What’s Included:

• (3) Rolls of 3/4" x 600' CenFuse® SDR 11 HDPE Loop Pipe

• (1) 1-1/4" x 3/4" 3-Circuit Straight Pattern Insulated Header

• (1) Geo-Pulse™ Non-Pressurized Flow Center – Single Pump

• (1) 1" x 12' Geothermal Hose Kit with MPT to 90° Barb Elbow Adapters

• (1) 5-Gallon Bucket of ProTek PG Plus Propylene Glycol

Specifications

Specifications at a Glance

Attribute	Details
Equipment Type	Closed Loop Installation Kit
System Size Compatibility	3 Ton
Configuration	Straight Header
Pipe Type	3/4" CenFuse® SDR 11 HDPE
Total Pipe Length	1,800 ft (3 Rolls x 600')
Flow Center	Geo-Pulse™ Non-Pressurized, Single Pump
Header Type	3-Circuit, 1-1/4" x 3/4", Insulated, Straight
Hose Kit	1" x 12' w/ MPT to 90° Barb Elbow Adapters
Heat Transfer Fluid	5 Gal – ProTek PG Plus Glycol
Proposition 65 Warning	⚠️ Yes

Installation

⚠️ Professional installation is required. Proper loop sizing, pressure testing, and system flow balancing should be completed by a licensed geothermal HVAC contractor to ensure safety, efficiency, and warranty compliance.
