GeoCool® 2-Ton Closed Loop Geothermal Installation Kit – Straight Manifold

MODEL: GCIK-CL2T-SM

Compact, All-in-One Ground Loop Kit for 2-Ton GeoCool® Geothermal Systems

The GeoCool® Closed Loop Installation Kit (2 Ton, Straight Manifold) is the ideal geothermal field solution for smaller residential applications. Designed for long-lasting efficiency, this professional-grade bundle simplifies the setup process while delivering maximum performance and reliability.

Whether you're installing a new energy-efficient heating and cooling system or upgrading an existing one, this 2-ton ground loop kit includes all the essential components—high-grade CenFuse® SDR 11 pipe, a straight 2-circuit insulated header, and a dependable single-pump Geo-Pulse™ flow center. The included ProTek PG Plus glycol ensures freeze protection and optimal heat transfer, making this a smart, eco-conscious investment for any home.

Why Installers Choose It

✅ Complete 2-Ton System Kit – Engineered for easy ground loop installation

✅ 1,200 ft of CenFuse® SDR 11 Pipe – High-density, underground-rated HDPE loop pipe

✅ 2-Circuit Straight Header – Pre-insulated for efficient indoor layout and minimal heat loss

✅ Reliable Single Pump Flow Center – Compact, non-pressurized design for residential systems

✅ Pre-Fitted Hose Kit – Includes secure 90° MPT-to-barb elbow connections

✅ ProTek PG Plus Glycol – 5-gallon antifreeze fluid for temperature regulation and freeze protection

✅ Fully Compatible with GeoCool® – Matches seamlessly with 2-ton GeoCool® geothermal units

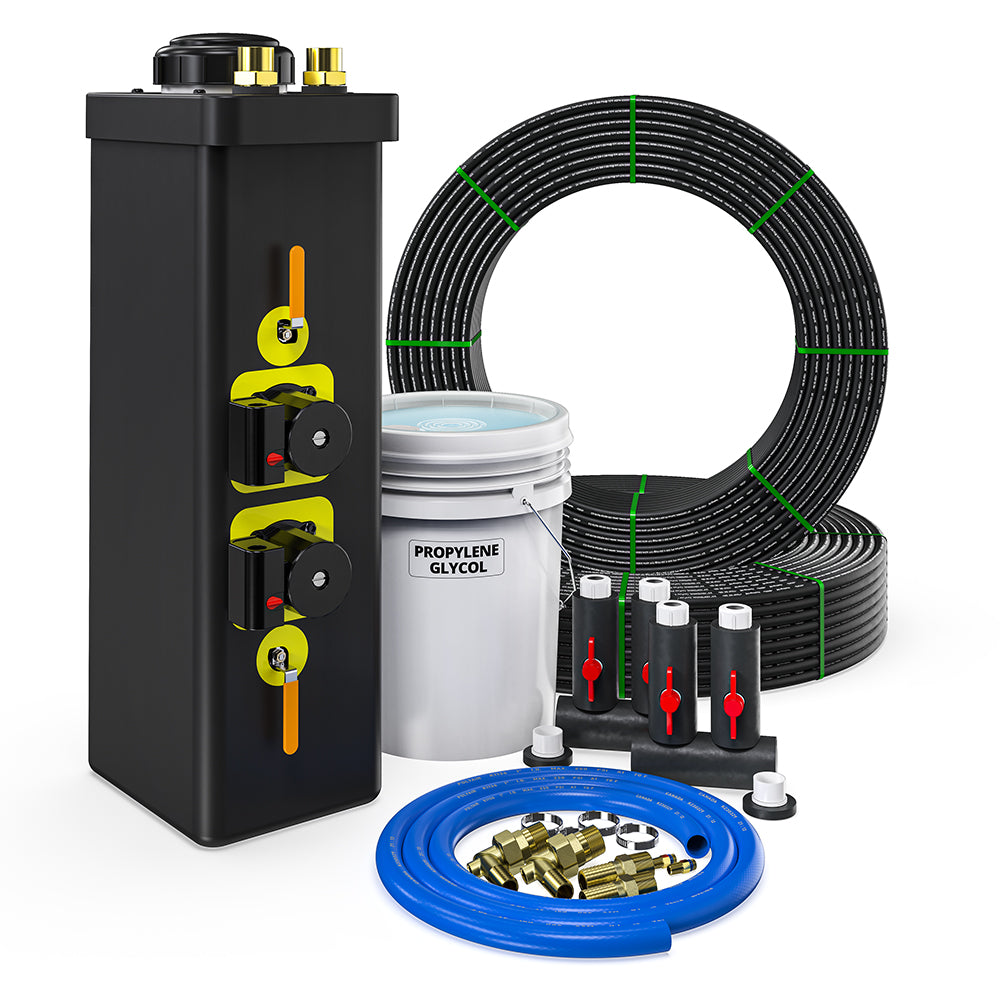

What’s Included:

• (2) Rolls of 3/4" x 600' CenFuse® SDR 11 HDPE Loop Pipe

• (1) 1-1/4" x 3/4" 2-Circuit Straight Pattern Insulated Header

• (1) Geo-Pulse™ Non-Pressurized Flow Center – Single Pump

• (1) 1" x 12' Geothermal Hose Kit with MPT to 90° Barb Elbow Adapters

• (1) 5-Gallon Bucket of ProTek PG Plus Propylene Glycol

Specifications

Specifications at a Glance

Attribute	Details
Equipment Type	Closed Loop Installation Kit
System Size Compatibility	2 Ton
Configuration	Straight Header
Pipe Type	3/4" CenFuse® SDR 11 HDPE
Total Pipe Length	1,200 ft (2 Rolls x 600')
Flow Center	Geo-Pulse™ Non-Pressurized, Single Pump
Header Type	2-Circuit, 1-1/4" x 3/4", Insulated, Straight
Hose Kit	1" x 12' w/ MPT to 90° Barb Elbow Adapters
Heat Transfer Fluid	5 Gal – ProTek PG Plus Glycol
Proposition 65 Warning	⚠️ Yes

Installation

⚠️ Professional installation required. For optimal performance, safety, and warranty coverage, this system should be installed by a licensed geothermal HVAC contractor. Accurate loop design, pressure testing, and flow setup are essential.
