GeoCool® 6-Ton Closed Loop Geothermal Installation Kit w/ Straight Manifold

MODEL: GCIK-CL6T-SM

Complete Ground Loop Solution for 6-Ton GeoCool® Systems

The GeoCool® GCIK-CL6T-SM Closed Loop Installation Kit provides all the premium components you need for a 6-ton geothermal ground loop setup. Designed with 5 rolls of CenFuse SDR 11 HDPE pipe, a 5-circuit straight insulated manifold, a dual-pump Geo-Pulse flow center, and two 5-gallon buckets of ProTek PG Plus glycol, this kit simplifies even the largest residential or light commercial geothermal installations.

With its straight manifold configuration, this kit allows for easy, organized field layouts and clean mechanical room setups. Built for compatibility with GeoCool® Inverter Series systems, it ensures superior heat transfer, long-term durability, and professional-grade performance.

Why This Kit is Contractor-Approved

✅ All-in-One 6 Ton Package – Everything you need to install a closed-loop field

✅ 3,000 ft of CenFuse SDR 11 Pipe – Industry-trusted HDPE for underground geothermal loops

✅ Straight 5-Circuit Header – Pre-insulated and designed for efficient field layouts

✅ Dual-Pump Geo-Pulse Flow Center – Optimized fluid circulation for larger systems

✅ Geothermal Hose Kit – Secure, flexible connections with MPT to barb adapters

✅ 10 Gallons of ProTek PG Plus Glycol – Protects against freezing and enhances heat transfer

✅ GeoCool® Compatible – Designed to pair with 6-ton GeoCool® geothermal heat pumps

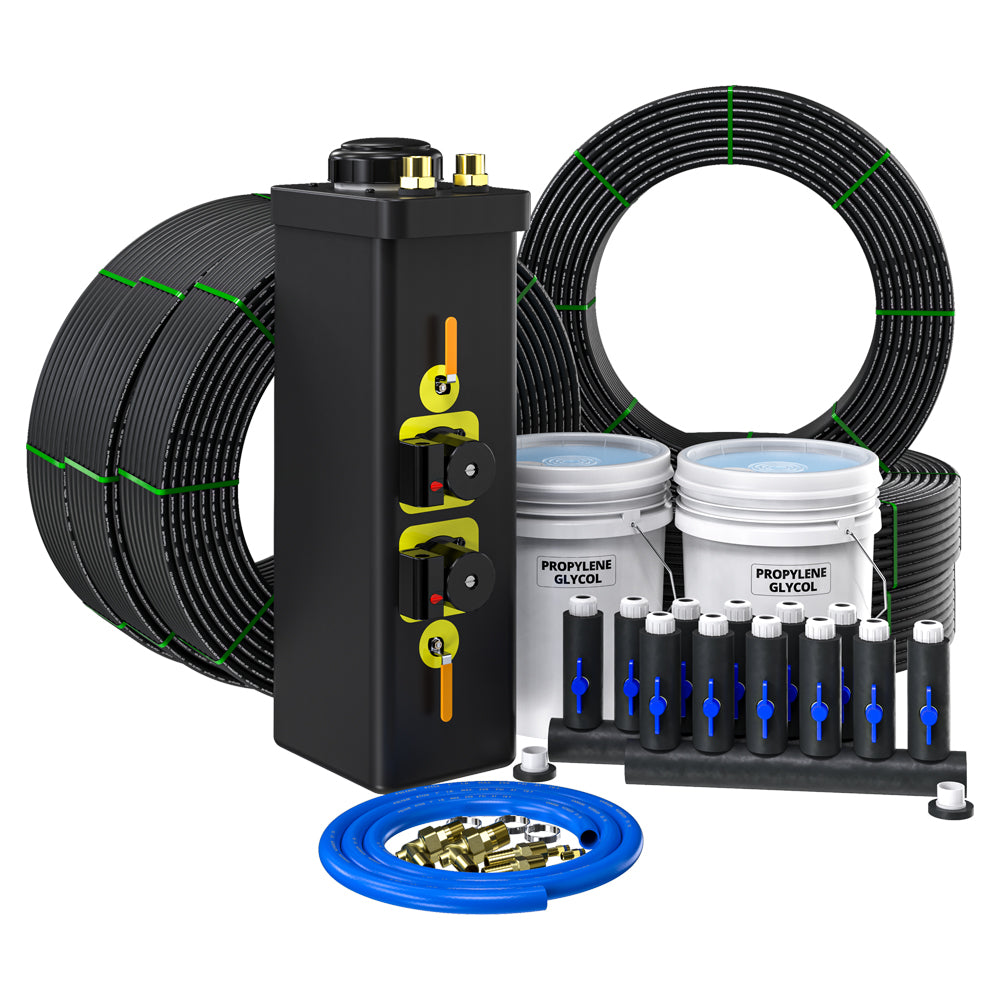

What’s Included:

• (5) Rolls of 3/4" x 600' CenFuse SDR 11 HDPE Loop Pipe


•  (1) 1-1/4" x 3/4" 5-Circuit Straight Insulated Header

• (1) Geo-Pulse Non-Pressurized Flow Center – Dual Pump

• (1) 1" x 12' Geothermal Hose Kit with MPT to Barb 90° Elbow Adapters

• (2) 5-Gallon Buckets of ProTek PG Plus Propylene Glycol Heat Transfer Fluid


Specifications

Specifications at a Glance

Attribute	Details
Equipment Type	Closed Loop Installation Kit
System Size Compatibility	6 Ton
Configuration	Straight Header
Pipe Type	3/4" CenFuse SDR 11 HDPE
Pipe Quantity	5 Rolls × 600 ft (3,000 ft total)
Flow Center	Geo-Pulse Non-Pressurized, Dual Pump
Header Type	5-Circuit, 1-1/4" × 3/4", Insulated, Straight
Hose Kit	1" x 12' w/ MPT to 90° Barb Elbow Adapters
Heat Transfer Fluid	(2) 5-Gal Buckets, ProTek PG Plus Glycol
Proposition 65	⚠️ Yes

Installation

⚠️ This kit requires professional installation. Proper loop field design, pump sizing, and fluid balancing must be performed by a licensed geothermal HVAC contractor to ensure warranty compliance.
