MRCOOL® EasyPro® 5th Gen 18,000 BTU Mini-Split Heat Pump System (208/230V) – Complete DIY Kit with 16 ft Fast Connection® Line Set
Free Shipping
Warranty Protection
Trusted Returns Policy
MODEL: EZPRO-18-HP-23016D-O
Powerful Heating & Cooling for Larger Spaces Up to 1,050 sq ft
The MRCOOL® EasyPro® 5th Gen 24,000 BTU Mini-Split Heat Pump System (208/230V) is engineered for high-capacity single-zone applications where dependable performance and efficient comfort are essential.
Delivering:
-
24,000 BTU cooling capacity
-
25,000 BTU heating capacity
-
Up to 18.9 SEER2 efficiency
-
2-ton inverter-driven performance
-
208/230V residential compatibility
This system is ideal for large open-concept living areas, finished basements, workshops, garages, studio spaces, light commercial rooms, and multi-use environments up to approximately 1,050 sq ft (conditions apply).
The included 16 ft pre-charged Fast Connection® line set simplifies connection between indoor and outdoor units. Built-in Wi-Fi connectivity, Follow Me® temperature sensing, Sleep Mode, and Auto Restart ensure modern control and reliable year-round comfort.
Why You’ll Love It

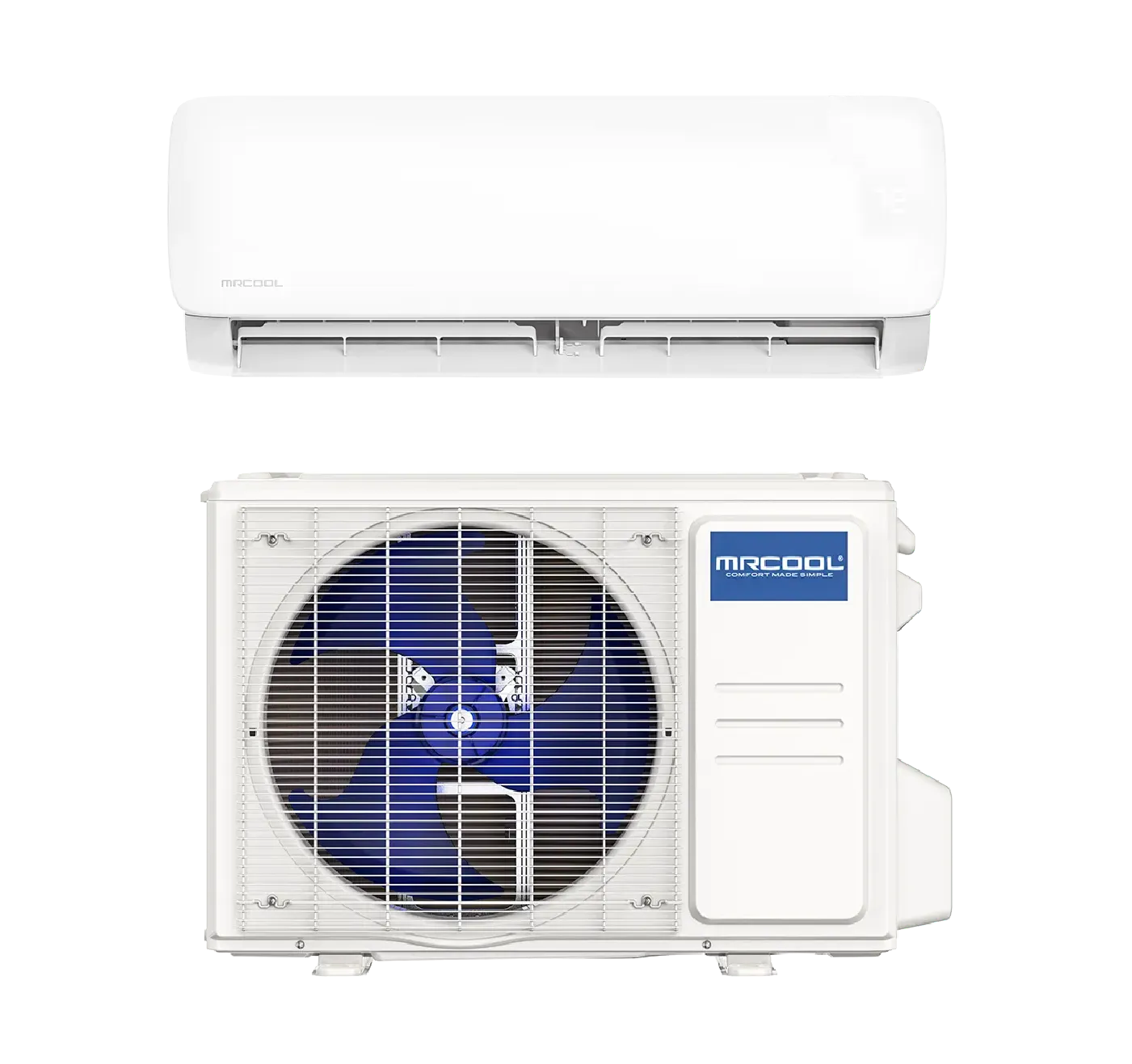

✅ Complete matched system (indoor + outdoor + 16 ft line set included)
✅ Designed for larger areas up to ~1,050 sq ft
✅ 2 Ton system (208/230V operation)
✅ Up to 18.9 SEER2 / 9.7 EER2 / 8.7 HSPF2-4 efficiency
✅ Low Ambient Cooling down to 5°F
✅ Wi-Fi enabled (iOS & Android compatible)
✅ Smart HVAC Controller® compatible (Google Assistant & Alexa ready)
✅ Quiet inverter performance — Indoor as low as 21.5 dB(A)
✅ Outdoor sound level up to 61 dB(A)
✅ Gold Fin® corrosion-resistant coating
✅ R-454B refrigerant
✅ AHRI Certified / NEEP Listed / UL / CSA / ETL Listed

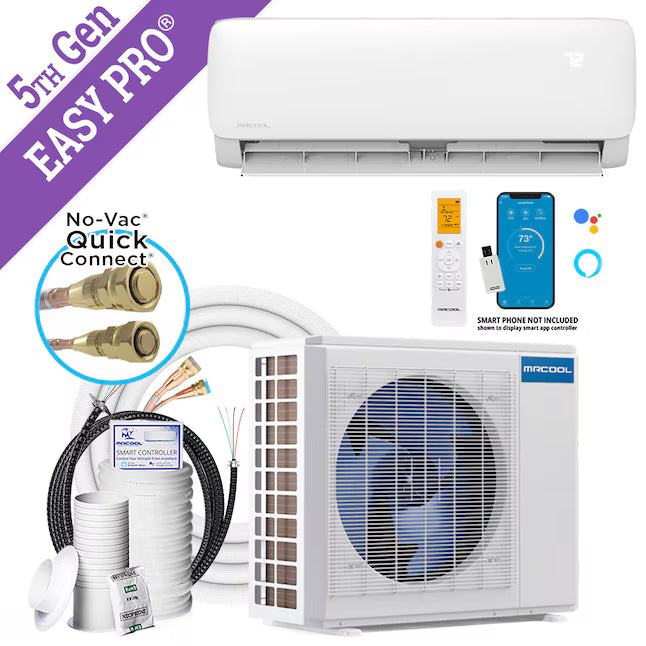

What’s Included:

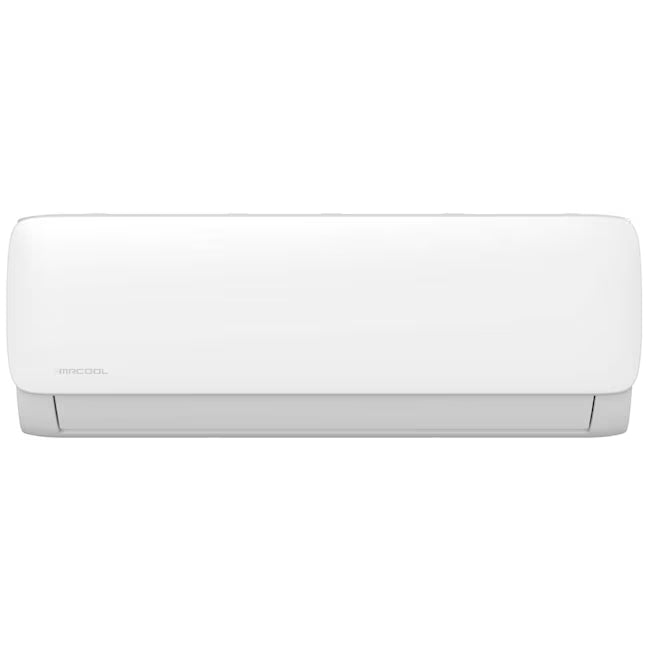

Indoor Unit
Model: EZPRO-24-HP-WMAH-230D-O
• Wall-mounted air handler
• Wireless remote (batteries included)
• Reusable filters

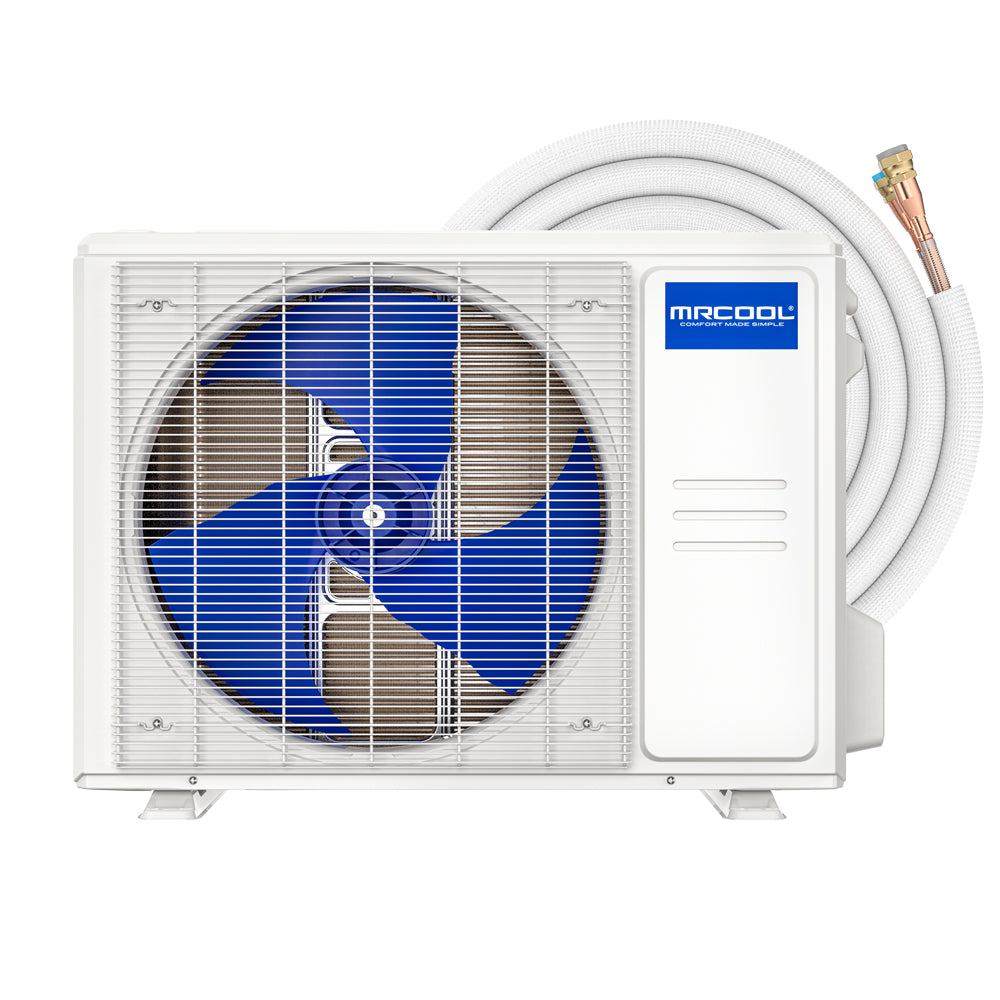

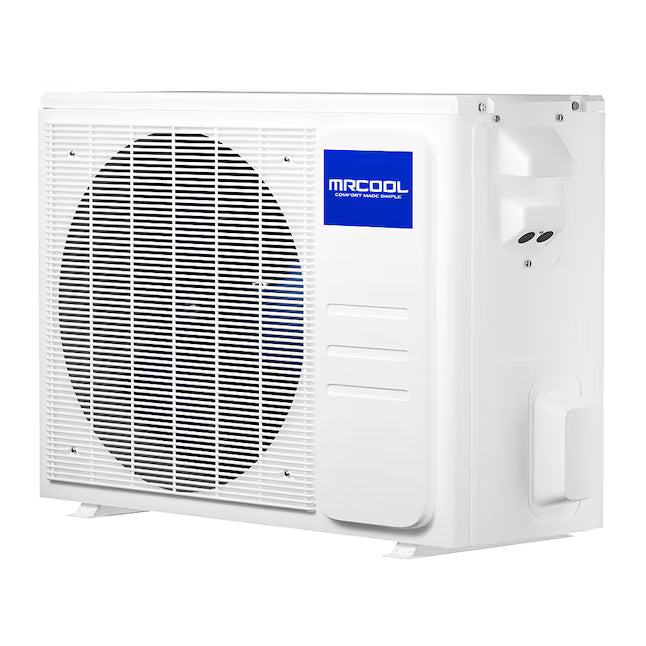

Outdoor Unit
Model: EZPRO-24-HP-C-23016D-O
• 2 Ton DC inverter condenser
Installation Components

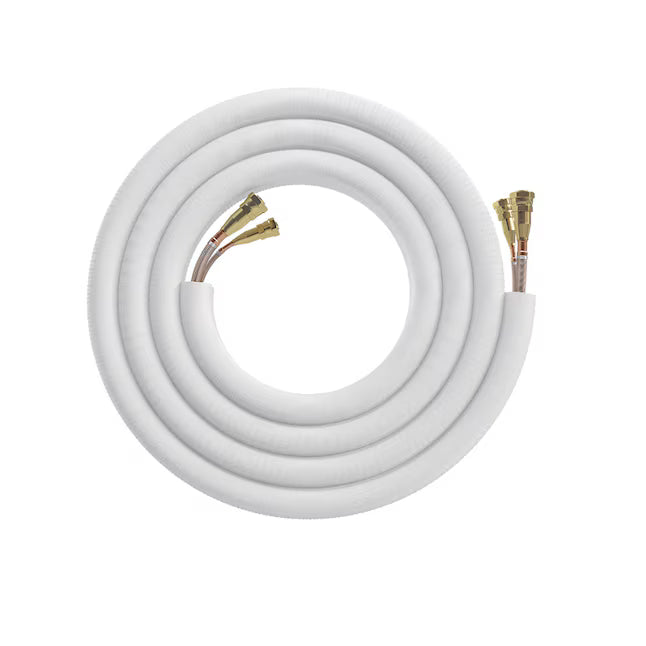

• 16 ft Fast Connection® pre-charged line set
• Installation documentation
Specifications
Specifications at a Glance
| Specification | Value |
|---|---|
| Coverage Area | Up to 1,050 sq ft (ideal conditions) |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 25,000 BTU |
| SEER2 | 18.9 |
| EER2 | 9.7 |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 6.9 |
| Voltage | 208/230V |
| Phase / Frequency | 1 Phase / 60 Hz |
| Tonnage | 2 Ton |
| Refrigerant | R-454B |
| Refrigerant Volume | 50.44 oz |
| Inverter | DC |
| Max Breaker | 20A |
| Min Circuit Ampacity | 19A |
| Line Set Length | 16 ft |
| Max Line Set Length | 164 ft |
| Line Sizes | 3/8" Liquid / 5/8" Suction |
| Outdoor Sound Level | Up to 61 dB(A) |
| Indoor Sound Range | 21.5 – 51.5 dB(A) |
| Indoor Airflow (CFM) | 729.9 / 547.4 / 400.2 / 329.6 |
| Compressor Type | Rotary |
| Certifications | AHRI, NEEP ccASHP Listed, CEE Tier 1 (North), UL, CSA, ETL |
| Warranty (Registered) | Extended Limited Lifetime* |
| Base Warranty | 1-Year Parts / 2-Year Compressor |
Warranty requires online registration. See manufacturer documentation for full terms.
Room Size & BTU Coverage Guide — MRCOOL® EasyPro® 5th Gen (Single-Zone)
| BTU Rating | Ideal Room Size (Approx.) |
|---|---|
| 9,000 | 250 – 400 sq. ft. — ideal for standard bedrooms, home offices, or compact living rooms |
| 12,000 | 400 – 600 sq. ft. — perfect for master bedrooms, mid-size living rooms, or larger offices |
| 18,000 | 600 – 800 sq. ft. — great for open-concept family rooms, workshops, or finished basements |
| 24,000 | 800 – 1,200 sq. ft. — ideal for large open spaces, great rooms, home gyms, basements, or multi-room areas |
Important:
Room size recommendations vary based on insulation quality, ceiling height, climate zone, window exposure, and internal heat load.
Installation
Installation Notes
-
Designed for simplified installation using included Fast Connection® line set
-
Electrical installation must comply with local code
-
Professional installation may be required depending on jurisdiction
-
Review installation manual prior to purchase
