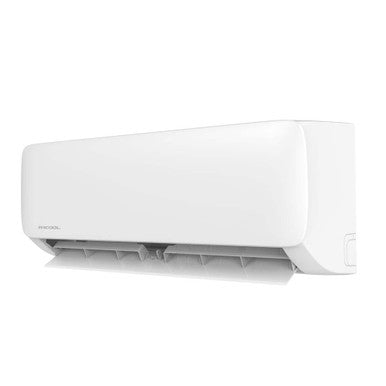

MRCOOL® EasyPro 5th Generation 24K BTU DIY Ductless Mini-Split Air Handler 230V
Free Shipping
Warranty Protection
Trusted Returns Policy
MODEL: EZPRO-24-HP-WMAH-230D-O
High-Capacity DIY Comfort for Rooms Up to 1,050 sq. ft.
The MRCOOL® EasyPro™ 24k BTU 5th Generation Mini-Split Air Handler is the ultimate solution for affordable, high-powered comfort in larger spaces such as living rooms, open-plan offices, or versatile home setups up to 1,050 sq. ft. Designed for easy installation, this unit is MRCOOL’s most budget-friendly air handler—making it perfect for homeowners or business owners who want professional-grade climate control without the professional price tag.
Control it from anywhere via the SmartHVAC® App or voice commands with Alexa and Google Assistant. Whisper-quiet performance, Active Clean Technology, and a Follow Me® remote ensure ideal comfort wherever you are in the room. Plus, Low Ambient Cooling down to 5°F makes this model perfect for year-round use—even in server rooms or greenhouses.
Why You’ll Love It
✅ Perfect for Large Spaces — Comfortably heats and cools areas up to 1,050 sq. ft.
✅ Effortless DIY Installation — Installs quickly without a technician using Quick Connect® line sets
✅ Smart Home Ready — Wi-Fi enabled, compatible with Alexa, Google Assistant, and the SmartHVAC® App
✅ Quiet & Clean Operation — Whisper-quiet as low as 21.5 dBA with built-in Active Clean Technology
✅ Follow Me® Feature — Maintains your ideal temperature based on the remote’s location
✅ Gold Fin® Protection — Rust-resistant coil coating built to last in coastal climates
✅ Year-Round Cooling — Low Ambient Cooling down to 5°F for use in server rooms and more
✅ Sleep Mode & Auto Restart — Keeps you comfortable and energy-efficient, even overnight or after power outages
✅ Strong Warranty Support — Lifetime Limited (with registration), 2-Year Compressor, 1-Year Parts
Specifications
Specifications at a Glance
| Attribute | Details |
|---|---|
| Voltage | 208/230V / 1 Phase / 60 Hz |
| Mount Type | Wall-Mounted |
| Max Coverage Area | Up to 1,050 sq. ft. |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 25,000 BTU |
| Decibel Rating | 21.5 dBA (Low), 51.5 dBA (High) |
| Oscillation | Yes |
| Filter Type | Reusable |
| Smart Wi-Fi Control | Yes (iOS & Android) |
| Remote Included | Yes |
| App & Voice Compatible | Alexa, Google Assistant |
| Warranty | Lifetime Limited*, 2-Year Compressor, 1-Year Parts |
| Certifications | AHRI, UL, ETL, CSA |
| Unit Dimensions | 42.6" W x 13.27" H x 9.21" D |
| Net Weight | 35.49 lbs |
| Proposition 65 Warning | Yes |
Room Size & BTU Coverage Guide
| BTU Rating | Ideal Room Size |
|---|---|
| 9,000 BTU | 250 – 400 sq. ft. |
| 12,000 BTU | 400 – 550 sq. ft. |
| 18,000 BTU | 600 – 800 sq. ft. |
| 24,000 BTU | 800 – 1,050 sq. ft. |
Tip: Consider insulation, ceiling height, sun exposure, and appliance heat when sizing your system. Need help? Our support team is happy to assist!
What’s Included
-
MRCOOL® EasyPro™ 24K BTU 5th Gen Mini-Split Air Handler
-
Wireless Remote Control
-
DIYPro™ Communication Cable
-
Installation Accessories
-
MRCOOL® Warranty Documentation
What You Need for a Complete System
To ensure full heating and cooling performance, pair this indoor air handler with:
-
MRCOOL® EasyPro™ 5th Gen Single-Zone Condenser (230V Compatible)
-
MRCOOL® Quick Connect® Pre-Charged Line Set (sold separately)
-
DIYPro™ Communication Cable (25ft, if not included)
-
Optional Accessories: Wall mount bracket, coupler kits, or additional line sets for longer runs
⚠️ Only compatible with MRCOOL® EasyPro™ 5th Generation outdoor condensers.
Prefer an All-in-One Solution?
Skip the guesswork and grab one of our EasyPro System Bundles — includes everything you need in one convenient package.
