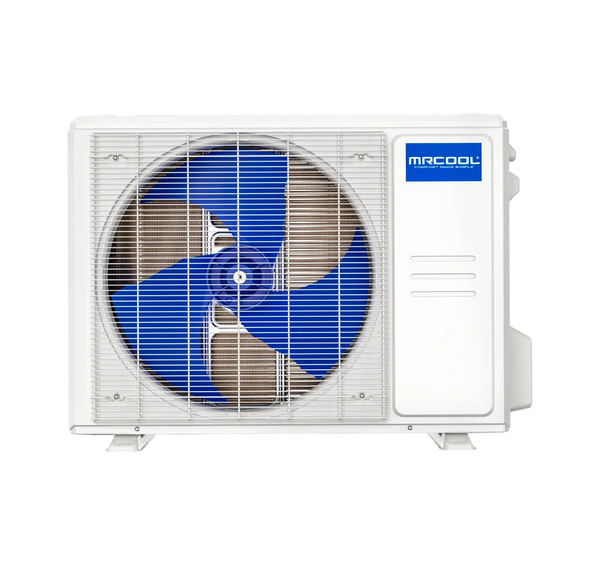

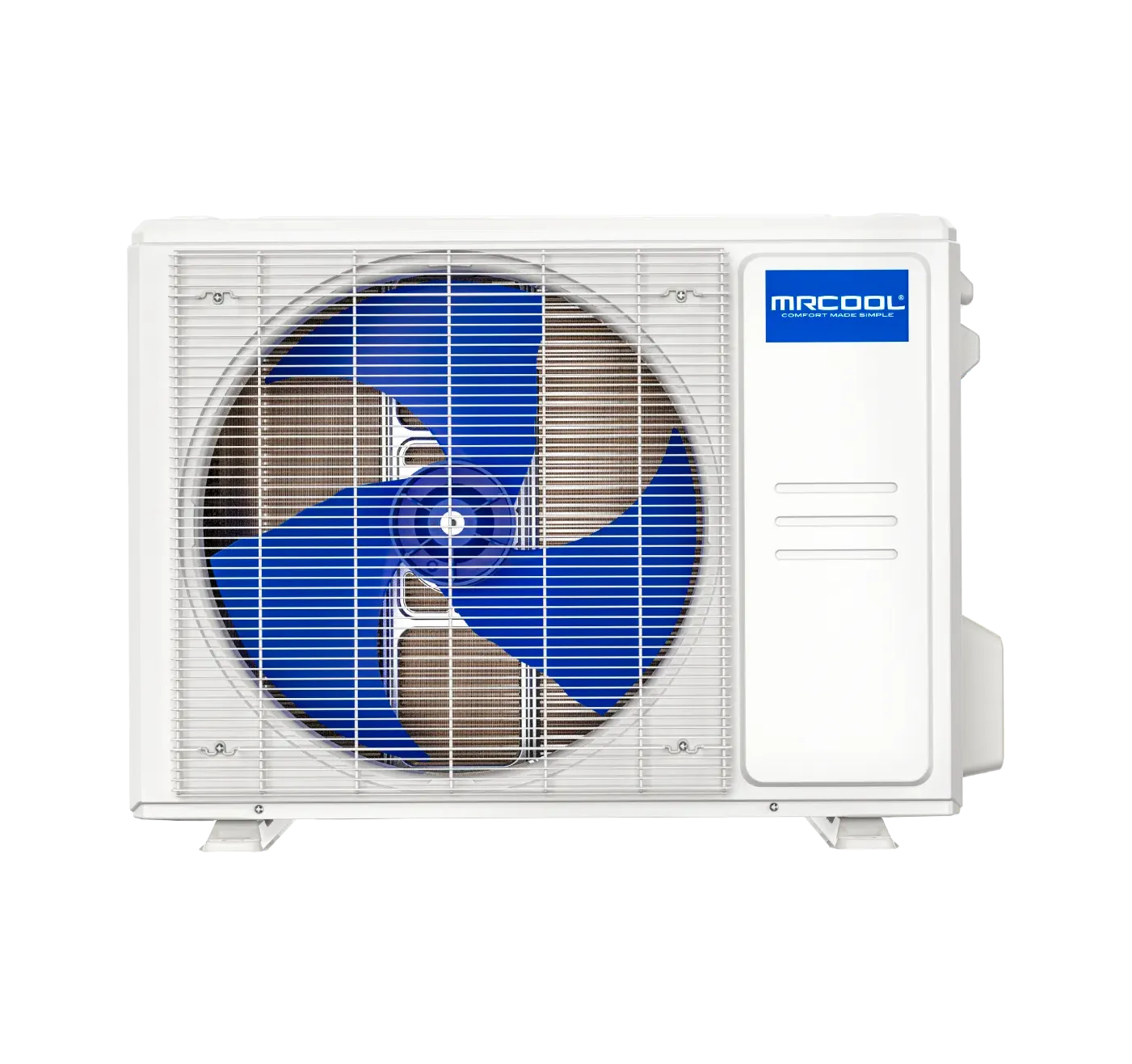

MRCOOL® EASY Pro™ Series 5th Gen 9k BTU Mini-Split Heat Pump Condenser
Free Shipping
Warranty Protection
Trusted Returns Policy
MODEL: EZPRO-09-HP-C-11516D-O
Effortless DIY Heating & Cooling for Spaces up to 400 sq. ft.
The MRCOOL® EasyPro™ 9k BTU 5th Generation Mini-Split Condenser delivers quiet, powerful heating and cooling for rooms up to 400 sq. ft. This energy-efficient 115V outdoor unit is designed with true DIY installation in mind—featuring a 16-foot pre-charged Fast Connection® line set, so no HVAC technician or special tools are required.
With an impressive SEER2 rating of 20.2, this condenser ensures top-tier efficiency and comfort. It includes advanced features like Low Ambient Cooling down to 5°F, Wi-Fi control via the SmartHVAC® App, and full voice compatibility with Alexa and Google Assistant. Whether you’re outfitting a bedroom, home office, or server room, this ultra-quiet unit (just 54 dB) delivers reliable climate control in all seasons.

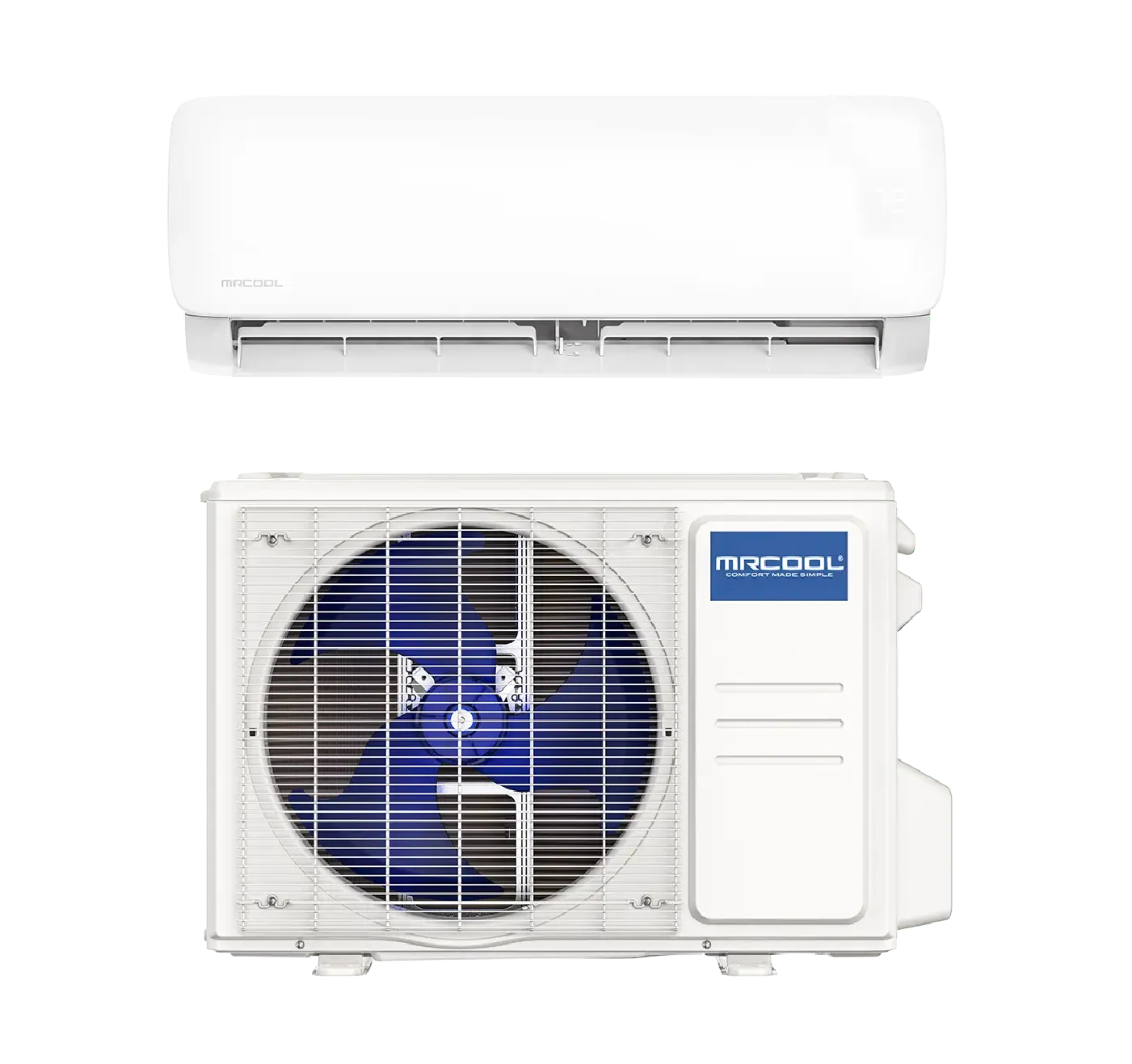

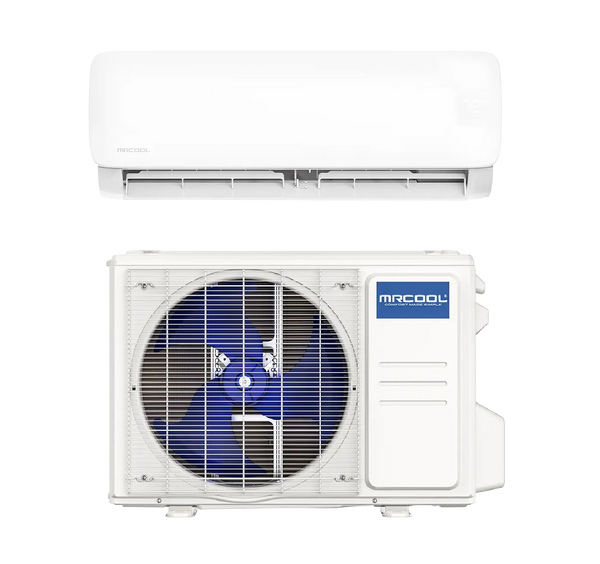

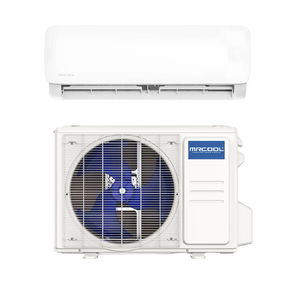

Pair it with the matching MRCOOL EasyPro™ 9k BTU Air Handler for a complete heating and cooling system you can install in hours.
Why You’ll Love It
✅ Sized for Small Spaces — Perfect for rooms up to 400 sq. ft. when paired with the 9k BTU EasyPro Air Handler
✅ Fully DIY-Friendly — Comes with a 16 ft. pre-charged Fast Connection® line set—no vacuum pump or HVAC tools needed
✅ Smart Wi-Fi Control — Works with the SmartHVAC® App, Amazon Alexa, and Google Assistant
✅ Quiet & Efficient — Operates at just 54 dB with 20.2 SEER2 and 9.2 HSPF2-4 for outstanding energy savings
✅ Low Ambient Cooling — Operates in temperatures as low as 5°F, ideal for greenhouses, garages, and server rooms
✅ Corrosion-Resistant Gold Fin® — Built to last, even in coastal or humid environments
✅ Auto Restart — Automatically resumes operation after power outages
✅ Reliable Warranty — Lifetime Limited (with registration), 2-Year Compressor, 1-Year Parts
Specifications
Specifications at a Glance
| Attribute | Details |
|---|---|
| Voltage | 115V / 1 Phase / 60 Hz |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 10,000 BTU |
| Efficiency Ratings | 20.2 SEER2 / 9.2 HSPF2-4 / 7.1 HSPF2-5 |
| Decibel Rating | 54 dB(A) |
| Max Coverage Area | Up to 400 sq. ft. (with compatible air handler) |
| Inverter Type | DC Inverter |
| Refrigerant | R-454B, Pre-Charged |
| Line Set Length Included | 16 ft. |
| Max Line Set Length | 82 ft. |
| Line Set Size | 1/4" Liquid, 3/8" Suction |
| Compressor Type | Rotary |
| Low Ambient Cooling | Down to 5°F |
| Smart Wi-Fi Control | Yes (iOS & Android) |
| Voice Control | Amazon Alexa & Google Assistant |
| Certifications | AHRI, UL, ETL, CSA |
| Warranty | Lifetime Limited*, 2-Year Compressor, 1-Year Parts |
| Unit Dimensions | 28.35" W x 19.49" H x 10.63" D |
| Net Weight | 54.67 lbs |
| Proposition 65 Warning | Yes |
What’s Included
-
MRCOOL® EasyPro™ 9K BTU 5th Gen Mini-Split Condenser
-

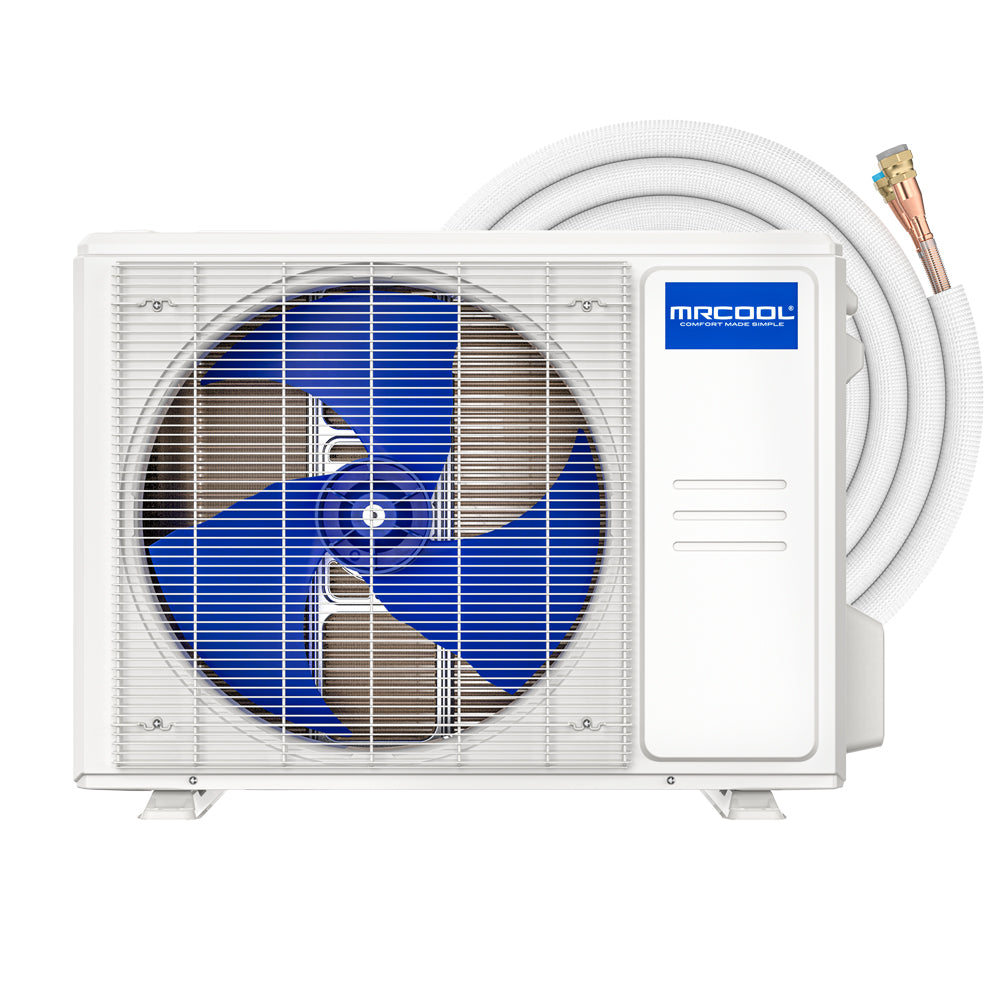

Pre-charged 16 ft. Fast Connection® Line Set
-
Installation Hardware
-
MRCOOL® Warranty Documentation
What You Need for a Complete System
To unlock full heating and cooling performance, pair this outdoor condenser with:
-
MRCOOL® EasyPro™ 5th Gen 9K BTU Air Handler (115V)
-
Fast Connection® Line Set – 16 ft.
-
Optional Accessories: Wall mount brackets or extended line sets (up to 82 ft. max)
⚠️ Only compatible with MRCOOL® EasyPro™ 5th Generation indoor units.
Prefer an All-in-One Solution?
Skip the guesswork and grab one of our EasyPro System Bundles — includes everything you need in one convenient package.
