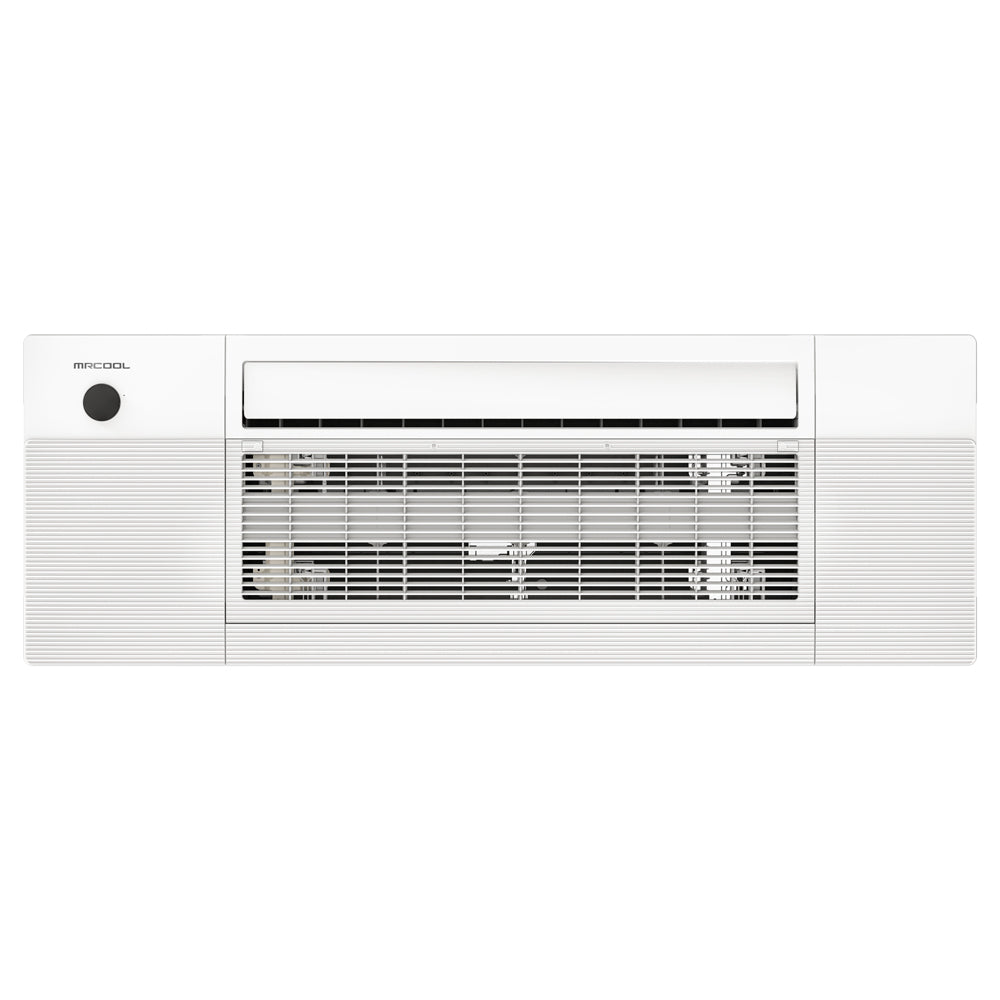

MRCOOL® DIY® Series 5th Gen OuttaSight® 6K BTU 230V One-Way Ceiling Cassette
MODEL: DIYCASSETTE06HP-230D25-O
Product Description
Discreet, Powerful Climate Control for Compact Spaces up to 200 sq. ft.
The MRCOOL® DIY® 5th Generation OuttaSight® 6K BTU 230V One-Way Ceiling Cassette offers a sleek, space-saving solution for efficient heating and cooling in smaller rooms, offices, or additions up to 200 sq. ft.. Designed for straightforward DIY installation, this ceiling cassette requires no specialized tools or vacuum pumps, making setup fast, clean, and cost-effective.

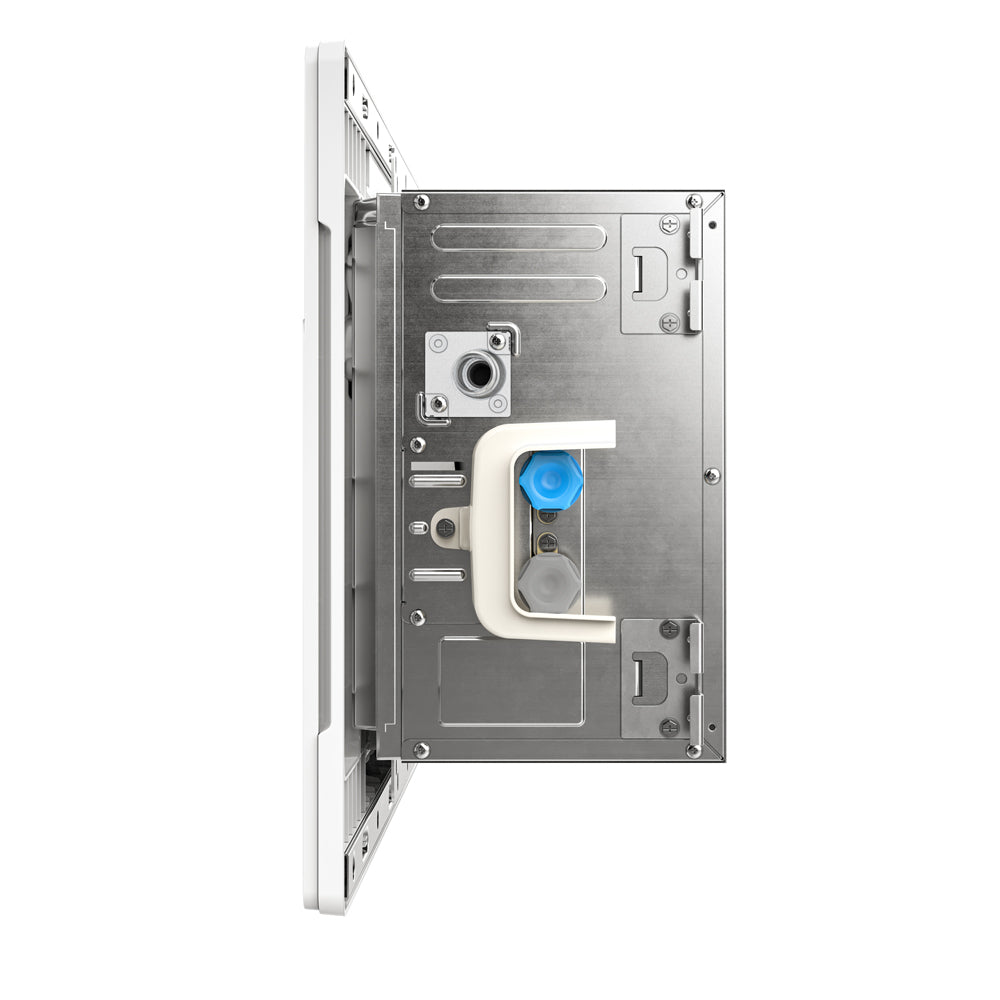

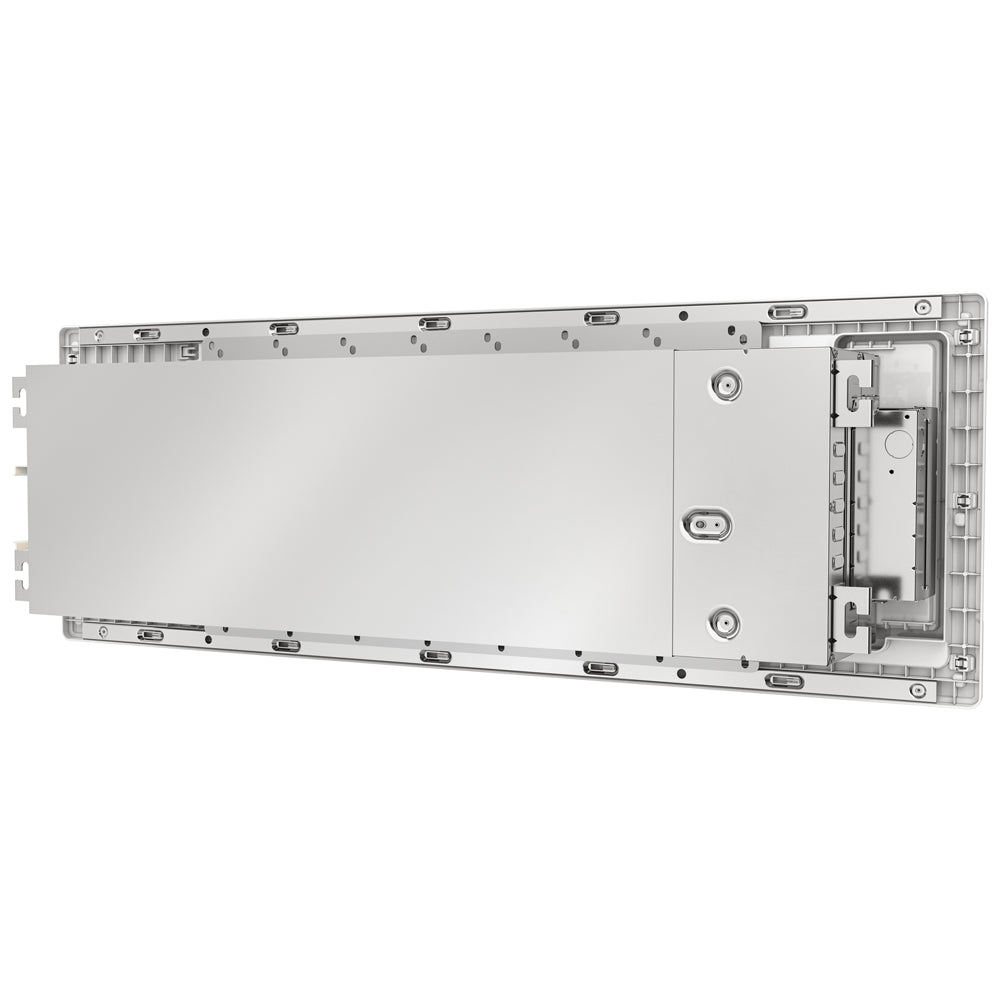

Engineered to integrate seamlessly into both single-zone and multi-zone 5th Gen MRCOOL® DIY® systems, it fits neatly between 16” ceiling joists, including modern pre-manufactured I-joists, delivering a flush-mounted, discreet appearance. Its Quick Connect® line set arrives pre-charged with eco-friendly R-454B refrigerant, eliminating the need for professional charging or vacuuming.
Enjoy full control of your indoor climate with the SmartHVAC® app, Amazon Alexa, Google Assistant, or the included wireless remote control. Advanced features like Swing Technology, Auto Mode, and Sleep Mode ensure personalized comfort, while the Elevation function allows the panel to lower for effortless filter cleaning.
Quiet operation, advanced filtration, and a best-in-class Limited Lifetime Compressor Warranty make this ceiling cassette a top-tier choice for discreet, reliable, and efficient home comfort
Why You’ll Love It
✅Ideal for Small Rooms & Offices — Delivers reliable heating and cooling for spaces up to 200 sq. ft.

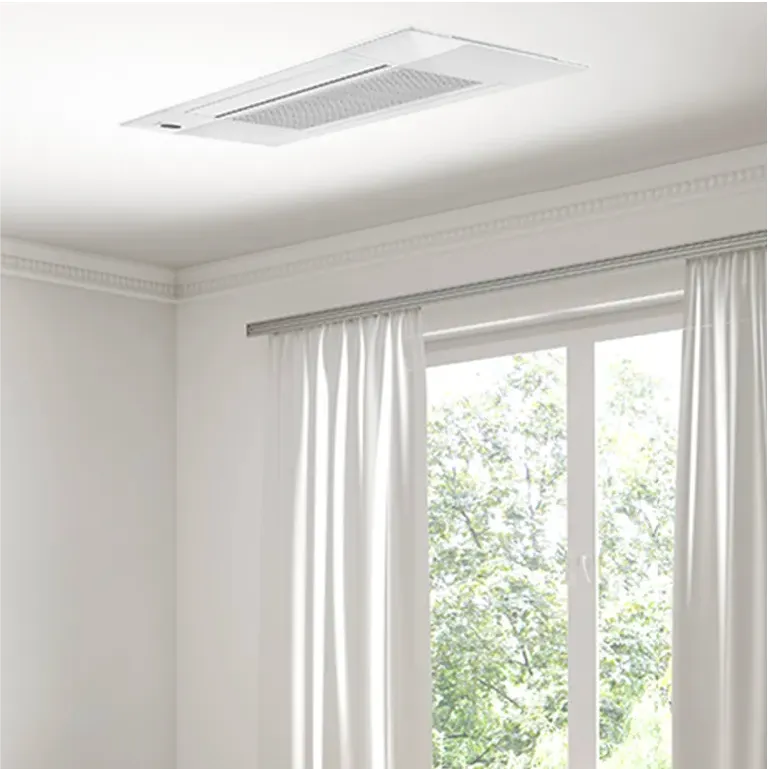

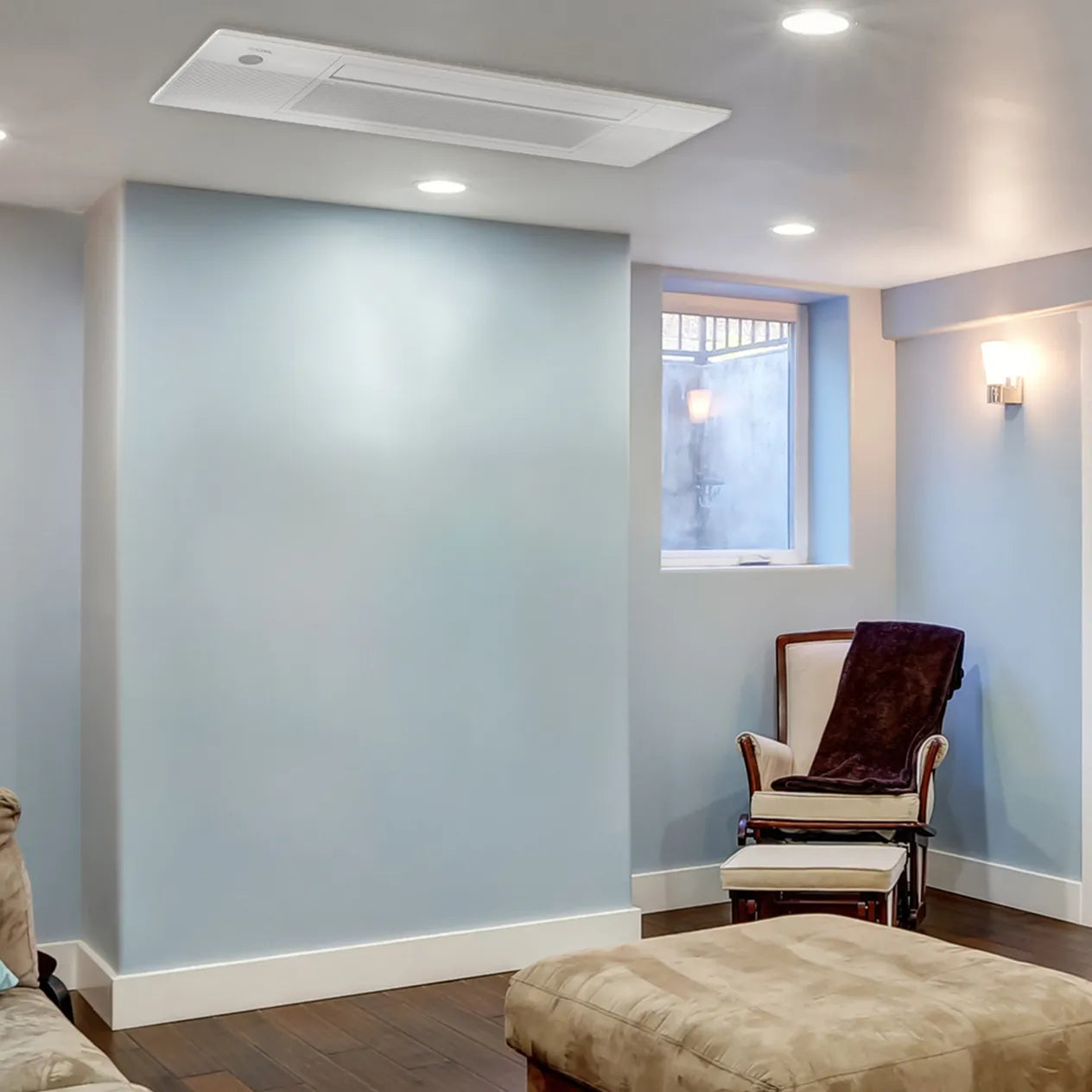

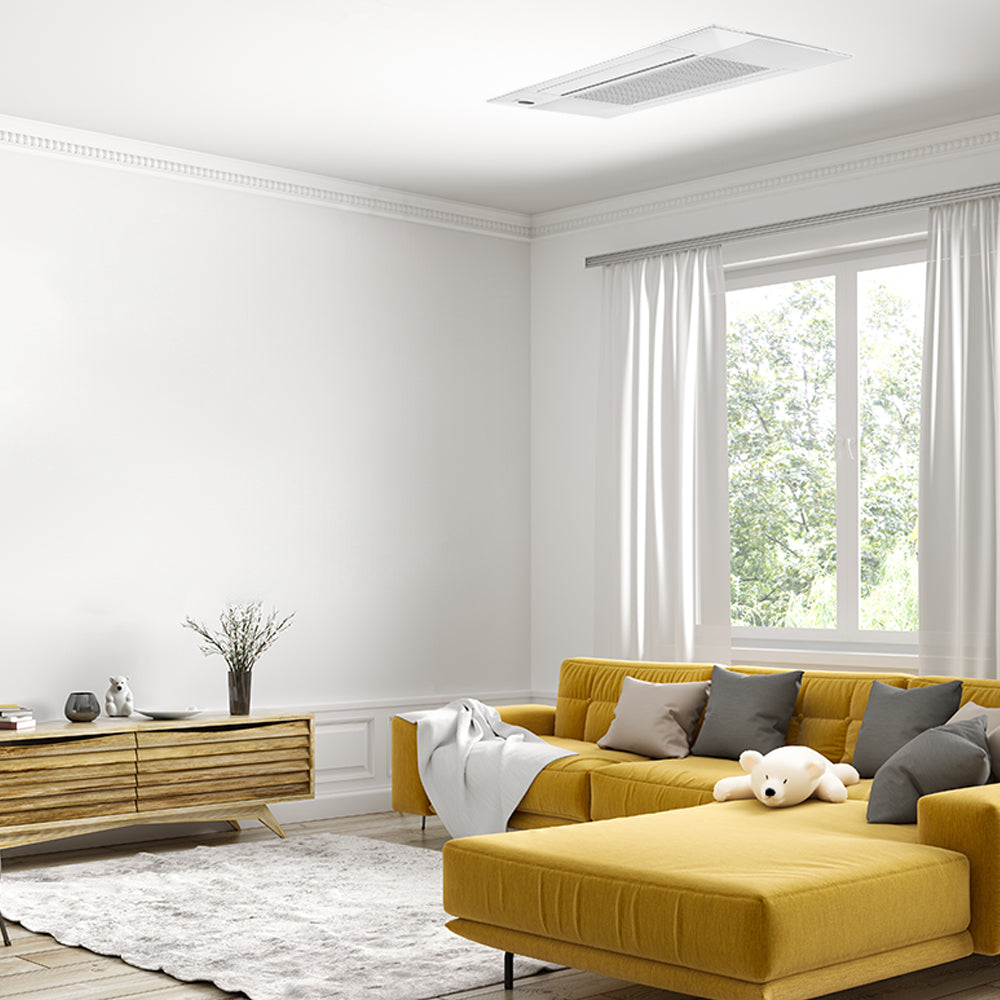

✅ Ultra-Discreet Low-Profile Design — Flush-mount installation between 16" ceiling joists
✅ DIY Installation Made Simple — Pre-charged Quick Connect® line set requires no vacuuming or HVAC pro
✅ Smart Control Ready — Compatible with SmartHVAC® app, Alexa, and Google Assistant
✅ Elevation Function for Easy Filter Access — Panel lowers for quick, hassle-free filter maintenance
✅ Quiet Operation — Operates as quietly as 23.5 dBA for peaceful, undisturbed comfort
✅ Energy-Efficient Eco Refrigerant — Uses R-454B, an environmentally friendly refrigerant
✅ Industry-Leading Warranty — Limited Lifetime Compressor Warranty, 7-Year Compressor, 5-Year Parts
What’s Included:
-
MRCOOL® 6K DIY® OuttaSight® 5th Gen Ceiling Cassette (230V)
-
Wireless Remote Control
-
Installation Accessories
-
MRCOOL® Warranty
Specifications at a Glance
| Attribute | Details |
|---|---|
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Cooling Capacity | 6,000 BTU |
| Max Coverage Area | 200 sq. ft. |
| SEER | 19 |
| Decibel Rating (Low/High) | 23.5 / 46.5 dBA |
| Airflow CFM | 341 / 294 / 259 / 235 / 235 |
| Mount Type | Ceiling Cassette |
| Refrigerant Type | R-454B |
| WiFi Compatible | Yes |
| App Compatibility | iOS & Android |
| Voice Control | Alexa & Google Assistant |
| Net Dimensions (WxHxD) | 50.31" x 8.98" x 13.19" |
| Net Weight | 45 lbs |
| Warranty | Lifetime Limited*, 7-Year Compressor, 5-Year Parts |
Room Size & BTU Coverage Guide
Choosing the right BTU (British Thermal Unit) output ensures your space stays consistently comfortable all year round. Use this quick reference chart to match your room size with the recommended cooling and heating capacity for your MRCOOL® DIY® OuttaSight® Ceiling Cassette.
| BTU Rating | Ideal Room Size |
|---|---|
| 6,000 | 100–200 sq. ft. |
| 9,000 | 250–400 sq. ft. |
| 12,000 | 400–600 sq. ft. |
| 18,000 | 600–1,000 sq. ft. |
Important:
Always consider additional factors such as ceiling height, insulation quality, sun exposure, number of windows, climate, and the number of heat-producing appliances in your space when choosing the right system.
What You Need for a Complete System
This air handler requires pairing with:
-
Compatible MRCOOL® DIY® 5th Gen Multi-Zone or Single-Zone Condenser
-
Pre-Charged 25ft Quick Connect® Line Set (sold separately)
Optional Accessories:
-
Additional Line Sets
-
Line Set Coupler Kits
-
Wireless Thermostat Controller
Important: Compatible with 5th Generation MRCOOL® DIY® Systems only.
