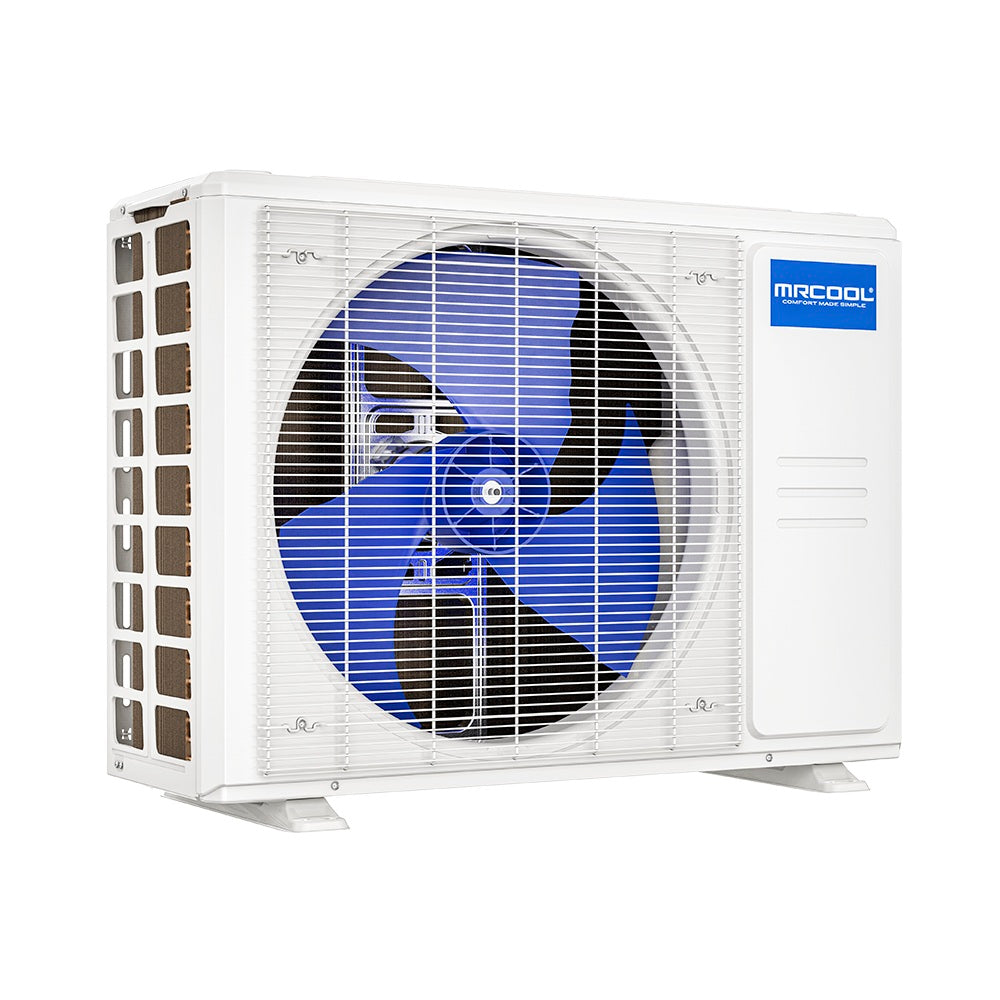

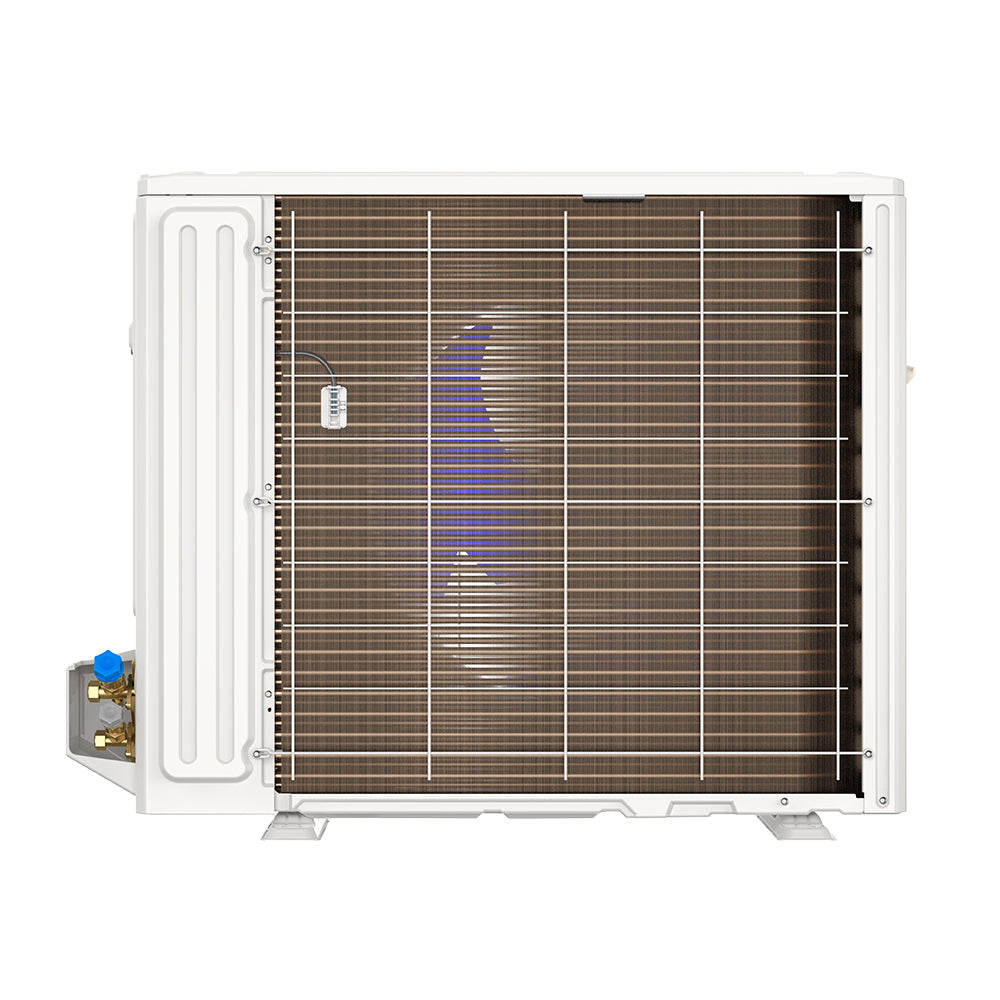

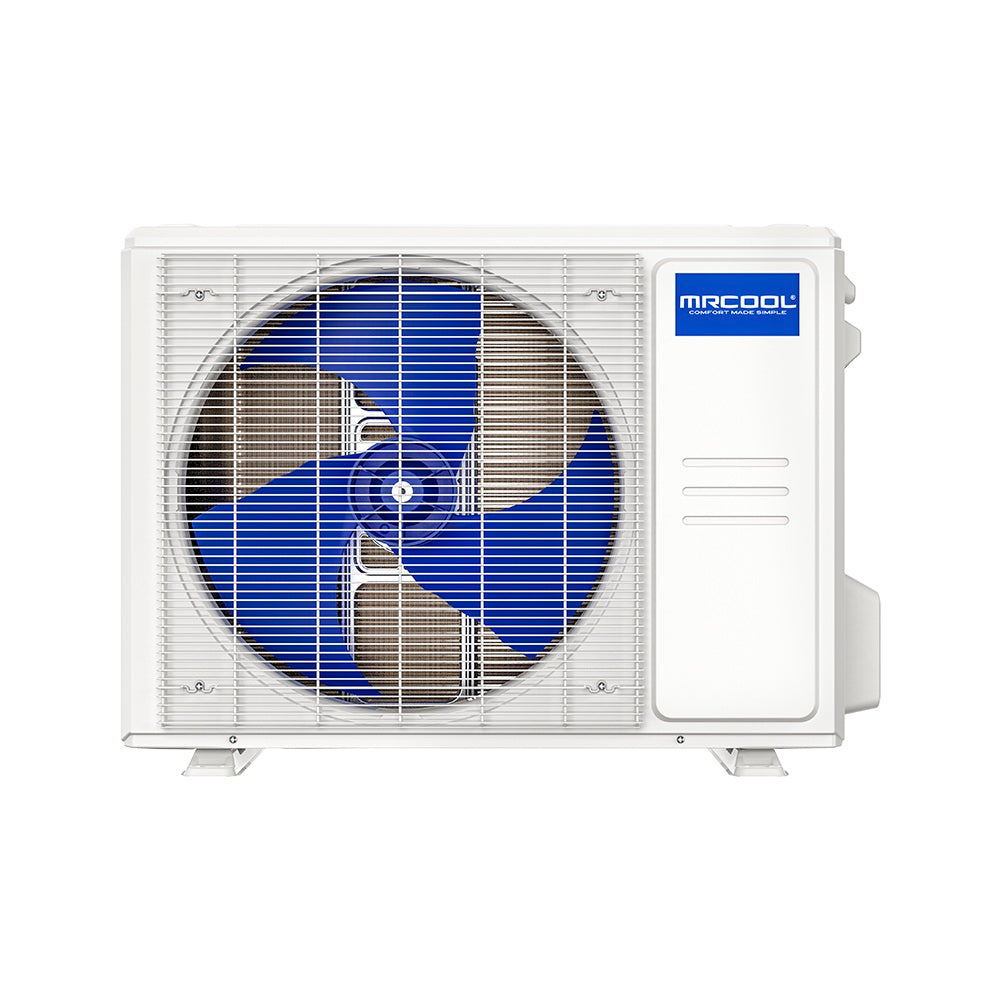

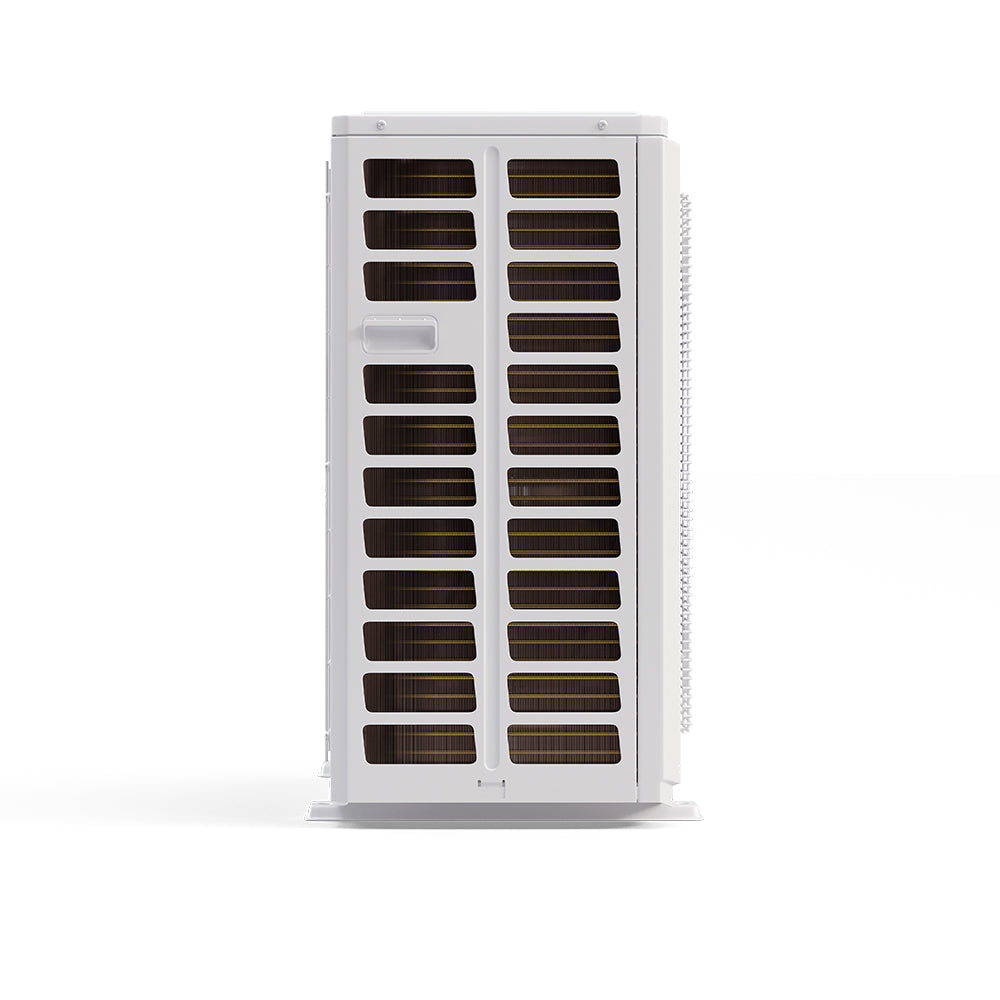

MRCOOL® 18k DIY 5th Generation Mini-Split Condenser 230v
Free Shipping
Warranty Protection
Trusted Returns Policy
MODEL: DIY-18-HP-C-230D25-O
High-Performance, DIY-Friendly Comfort for Spaces up to 750 sq. ft.
The MRCOOL® 18K BTU DIY® 5th Generation Mini-Split Condenser is the perfect solution for those who want powerful, energy-efficient heating and cooling without the hassle of hiring an HVAC technician. Designed for simple, true DIY installation, this unit is ideal for larger bedrooms, living rooms, home gyms, workshops, or offices up to 750 sq. ft.
Thanks to the pre-charged 25-foot Quick Connect® line set with eco-friendly R-454B refrigerant, installation is fast, clean, and requires no vacuum pump or special tools. The DIYPro™ communication cable replaces traditional electrical conduit for enhanced outdoor durability against weather, pets, and yard tools.
Enjoy full climate control via the SmartHVAC® app, or hands-free voice commands with Amazon Alexa and Google Assistant. The Gold Fin® condenser coating defends against corrosion, making it a perfect choice for coastal and humid environments.
Additional features like Auto Mode, Timer Function, Auto Restart, and Anti-Mildew Protection ensure your home stays effortlessly comfortable and your air handler remains clean. Backed by one of the best warranties in the industry, this condenser delivers years of reliable performance.
Why You’ll Love It
✅ Perfect for Larger Spaces — Ideal for bedrooms, home gyms, and living areas up to 750 sq. ft.
✅ Easy DIY Installation — Pre-charged Quick Connect® line set and DIYPro™ cable simplify setup with no pro tools required
✅ Smart-Home Compatible — Control with the SmartHVAC® app, Amazon Alexa, or Google Assistant
✅ Gold Fin® Anti-Corrosion Coating — Ideal for coastal and humid climates
✅ Ultra-Quiet Operation — Whisper-quiet 58.5 dBA performance
✅ Eco-Friendly Refrigerant — Uses efficient, environmentally safer R-454B
✅ Industry-Leading Warranty — Limited Lifetime Compressor Warranty (with registration), 7-Year Compressor Warranty, 5-Year Parts Warranty
What’s Included:
-
MRCOOL® 18K DIY® 5th Gen Mini-Split Condenser
-
25ft DIYPro™ Communication Cable
-
Installation Accessories
-
MRCOOL® Warranty Documents
Specifications
Specifications at a Glance
| Attribute | Details |
|---|---|
| Voltage | 208/230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Max Coverage Area | 750 sq. ft. |
| SEER2 | 22.5 |
| EER2 | 13.7 |
| HSPF2-4 | 11.5 |
| HSPF2-5 | 8.5 |
| Compressor Type | Rotary |
| Inverter | DC |
| WiFi Compatible | Yes |
| App Compatibility | iOS & Android |
| Voice Control | Alexa & Google Assistant |
| Corrosion-Resistant | Gold Fin® Coating |
| Net Dimensions (WxHxD) | 35.04" x 26.5" x 13.46" |
| Net Weight | 93.48 lbs |
| Warranty | Lifetime Limited*, 7-Year Compressor, 5-Year Parts |
Room Size & BTU Coverage Guide
Choosing the right BTU (British Thermal Unit) output ensures your space stays consistently comfortable all year round.
| BTU Rating | Ideal Room Size |
|---|---|
| 9,000 BTU | 250 – 400 sq. ft. |
| 12,000 BTU | 400 – 600 sq. ft. |
| 18,000 BTU | 600 – 1,000 sq. ft. |
| 24,000 BTU | 1,000 – 1,300 sq. ft. |
| 36,000 BTU | 1,300 – 1,800 sq. ft. |
Important:
Always consider additional factors such as ceiling height, insulation quality, sun exposure, number of windows, climate, and the number of heat-producing appliances in your space when choosing the right system.
What You Need for a Complete System
To achieve full heating and cooling performance, pair this condenser with:
-
MRCOOL® DIY® 5th Gen Air Handler (230V Compatible)
-
MRCOOL® Quick Connect® Pre-Charged Line Set (25ft included)
-
DIYPro™ Communication Cable (25ft included)
Optional Accessories:
-
MRCOOL® Wall Mount Bracket
-
Additional Quick Connect® Line Sets
-
Coupler Kits for line set extensions
Note: This condenser is compatible exclusively with MRCOOL® DIY® 5th Gen Single-Zone Air Handlers (230V). Not compatible with 3rd or 4th Gen systems.
