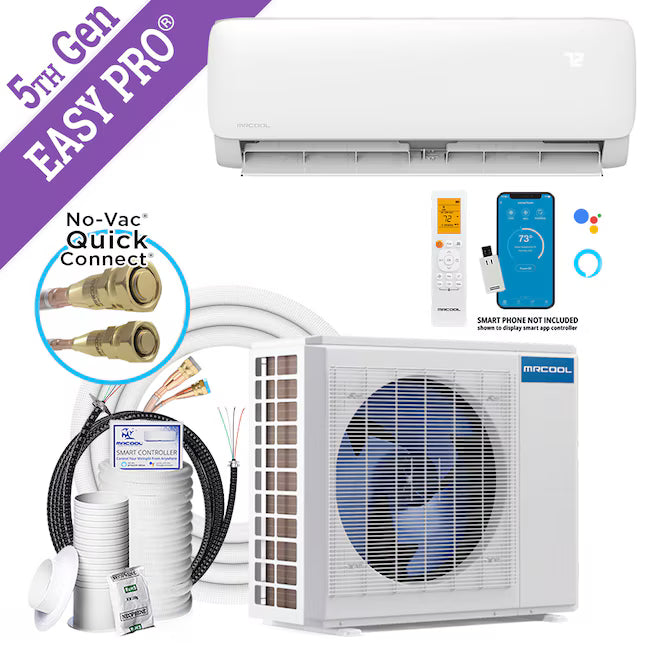

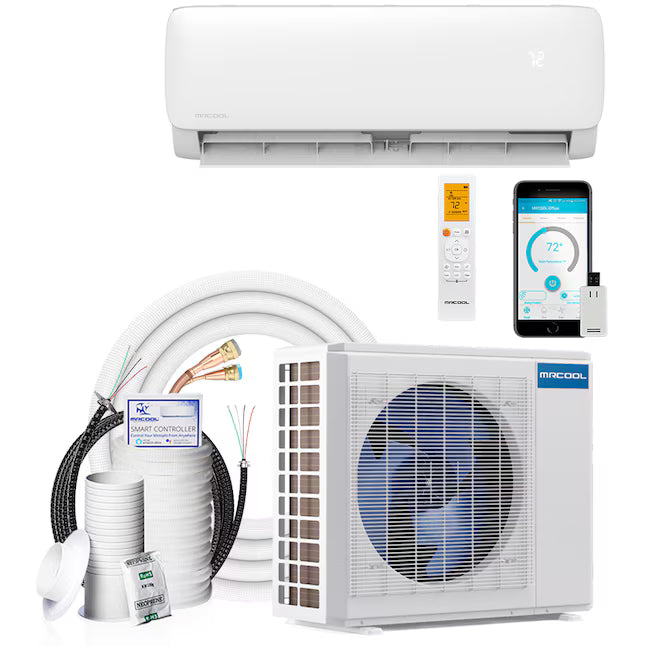

What's in the box
- 1 × MRCOOL® EasyPro® 5th Gen 9K BTU Wall-Mounted Air Handler

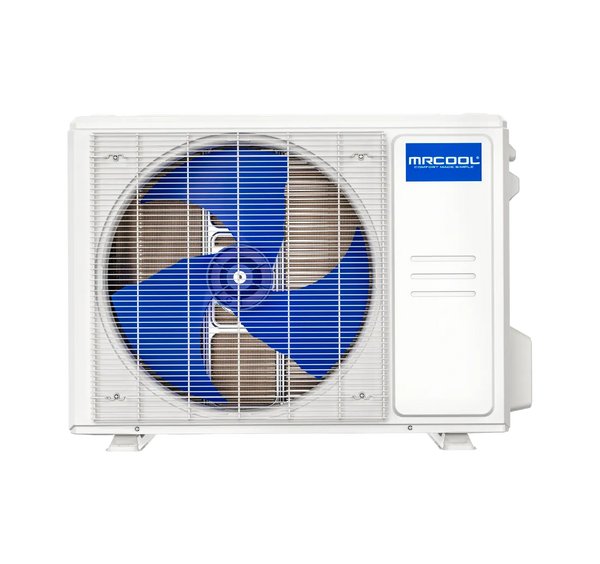

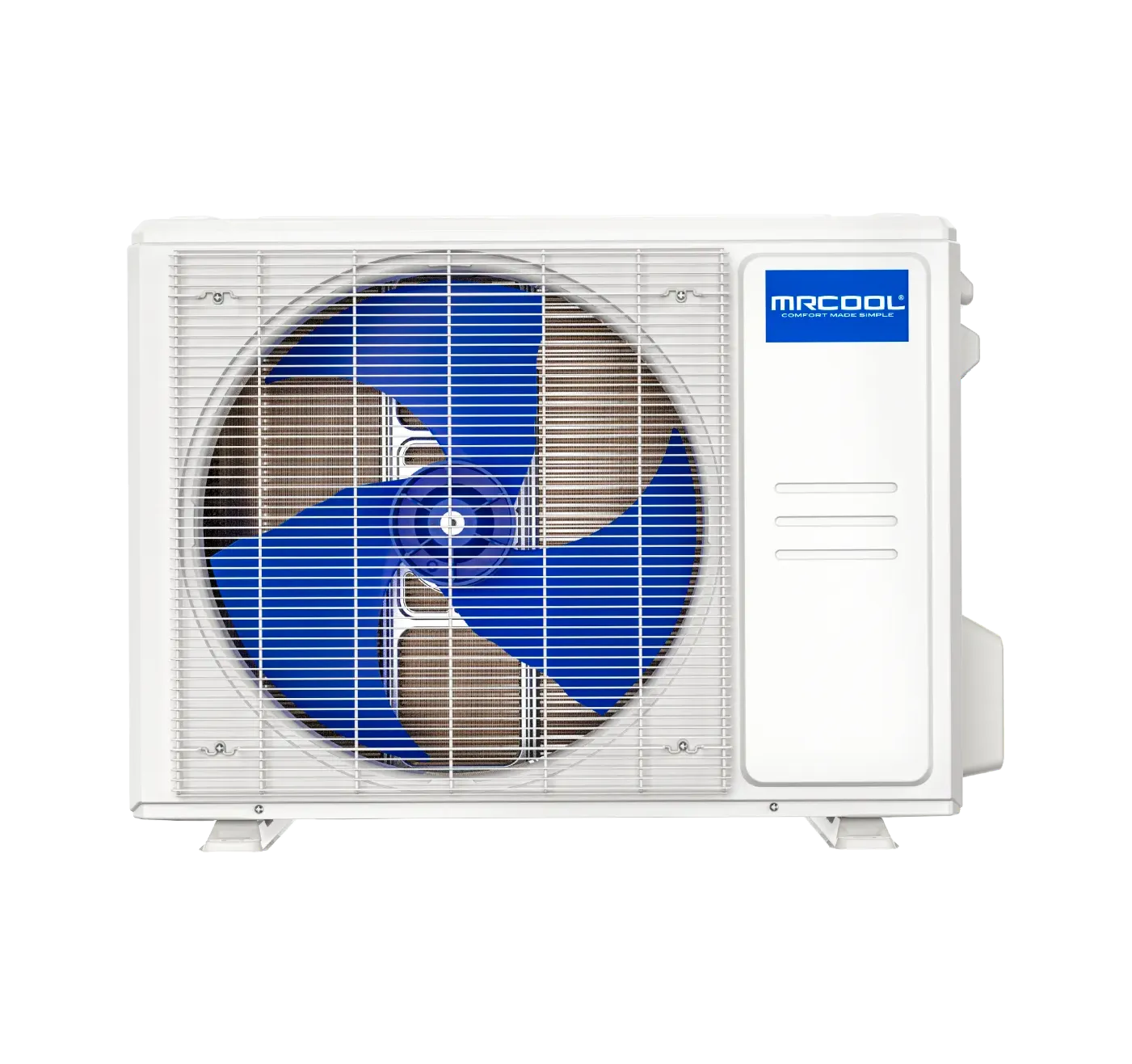

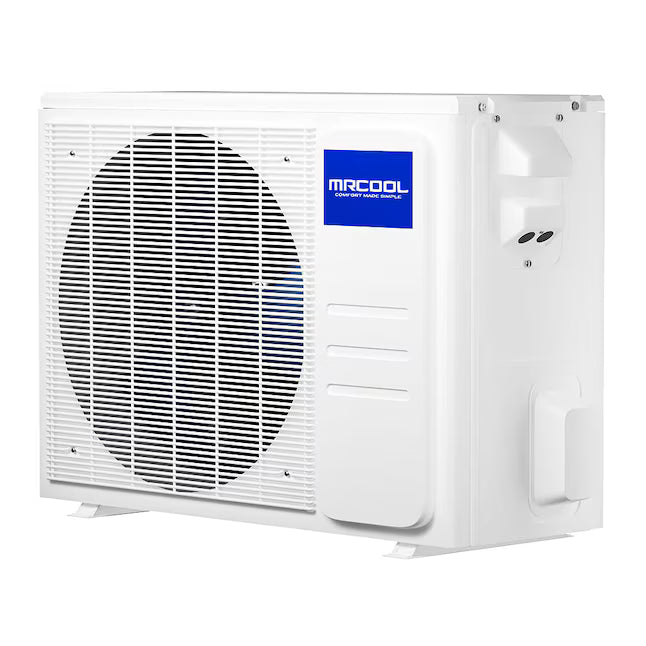

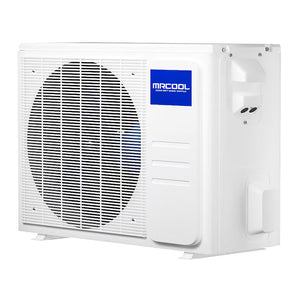

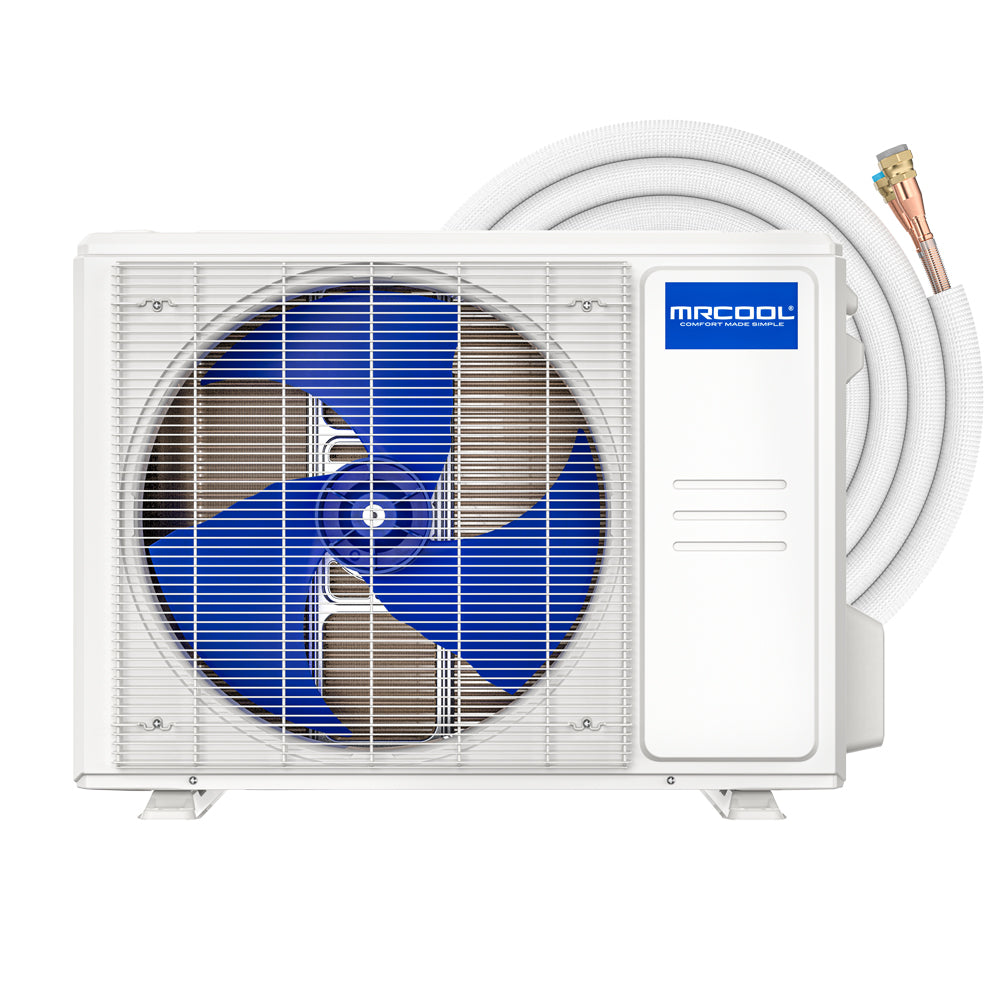

- 1 × MRCOOL® EasyPro® 5th Gen 9K BTU Condenser

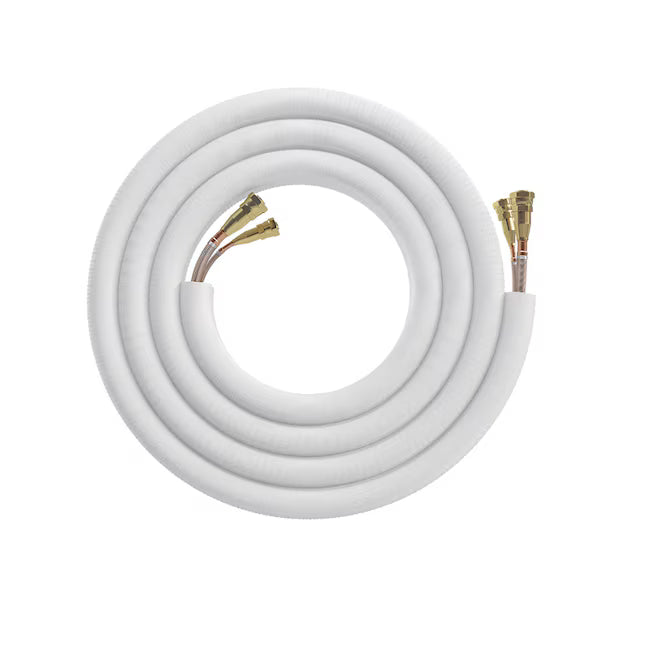

- 1 × 16 ft Pre-Charged Fast Connection® Line Set
- 1 × Wireless Remote Control
- Product Documentation
- DIY-friendly installation.
- This EasyPro® system includes a 16 ft pre-charged Fast Connection® line set.
- Electrical requirements, permits, and local building codes may vary.
- Professional electrical work may be required.
- Base Parts Warranty: 1 Year Base
- Compressor Warranty: 2 Years
Warranty coverage may depend on proper installation, product registration, and MRCOOL® warranty requirements.
- Free U.S. curbside delivery within the Lower 48 States on qualifying orders
- Orders ship from U.S. warehouses
- Delivery times may vary by location and carrier availability
- Returns accepted within 30 days for unused and uninstalled products
- Approved returns may be subject to a restocking fee
Manuals & documents
MODEL: EZPRO-09-HP-11516D-O
Budget-Friendly Comfort Made Easy.
Need reliable heating and cooling for a bedroom, home office, small living space, server room, greenhouse, or compact area without the higher cost of a premium DIY system?

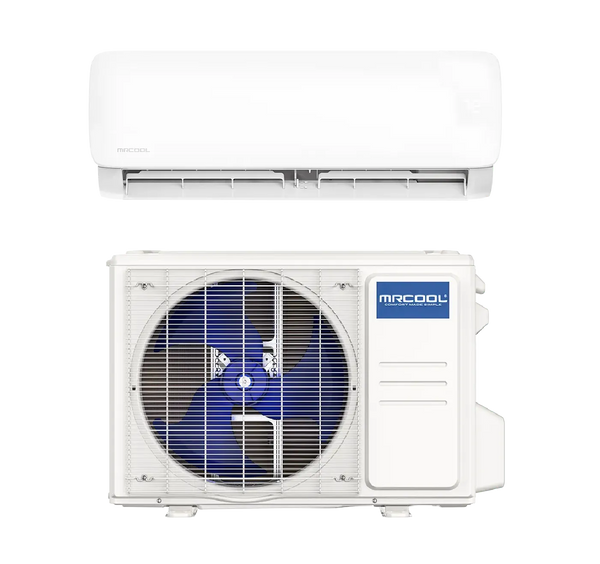

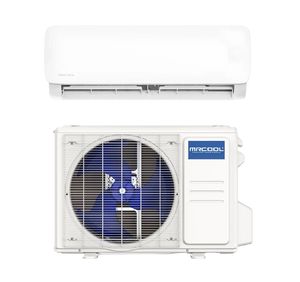

The MRCOOL® EasyPro® 5th Gen 9K BTU Mini Split System is designed to deliver efficient year-round comfort for spaces up to around 400 sq ft while keeping installation simpler and more affordable.

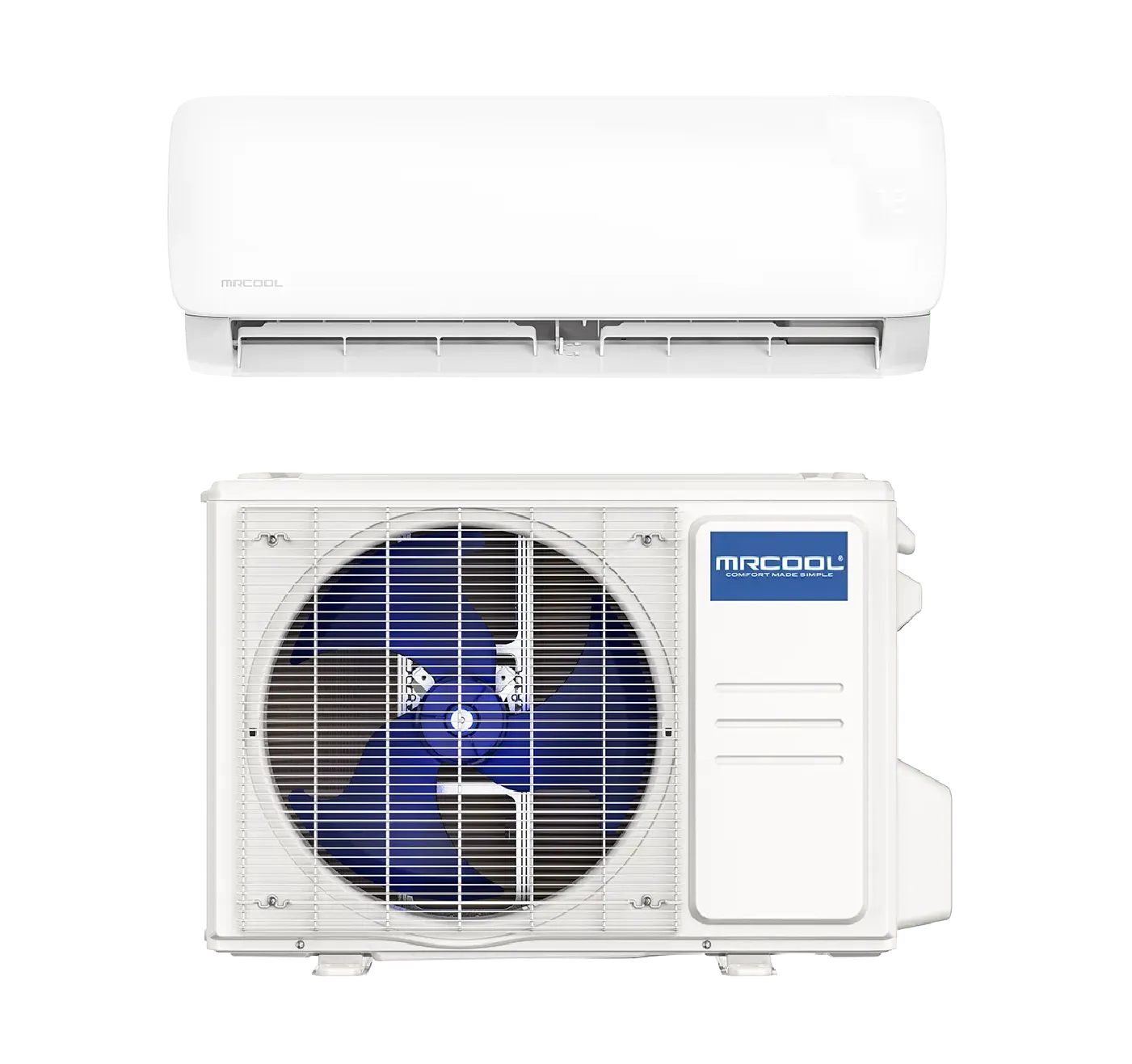

This complete 115V single-zone system includes a matching 9K BTU indoor air handler, outdoor condenser, and 16 ft pre-charged Fast Connection® line set, giving homeowners a practical way to upgrade room comfort without a traditional ducted system.
With 20.2 SEER2 efficiency, R-454B refrigerant, DC inverter technology, WiFi compatibility, app control, low ambient cooling down to 5°F, and quiet operation, this system is built for everyday comfort in smaller spaces.
Affordable. Smart. Efficient. Built for easy room comfort.
Why You’ll Love It
✅ Complete 9K BTU mini split system
✅ Ideal for spaces up to around 400 sq ft
✅ Budget-friendly MRCOOL® EasyPro® design
✅ 115V single-zone setup
✅ Includes 16 ft pre-charged Fast Connection® line set
✅ 20.2 SEER2 efficiency
✅ R-454B refrigerant
✅ DC inverter technology
✅ WiFi and app compatible
✅ Works with iOS and Android
✅ Quiet indoor operation
✅ Low ambient cooling down to 5°F
✅ Auto Restart and Sleep Mode
✅ Reusable filter
✅ Remote control included
✅ 1-Year Parts / 2-Year Compressor base warranty
Best For
Bedrooms • Home Offices • Small Living Rooms • Server Rooms • Greenhouses • Nurseries • Guest Rooms • Small Apartments • Budget-Friendly Mini-Split Installations
| Product Type | Mini Split |
| Series | EasyPro® 5th Gen |
| BTU Size | 9K BTU |
| Voltage | 115V |
| Zone Type | Single Zone |
| Coverage | 400 sq ft |
| System Type | Heat Pump |
| Brand | MRCOOL® |
| Air Handler | EZPRO-09-HP-WMAH-115D-O |
| Condenser | EZPRO-09-HP-C-11516D-O |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 10,000 BTU |
| Tonnage | 0.75 Ton |
| SEER2 | 20.2 |
| EER2 | 11.3 |
| HSPF2-4 | 9.2 |
| HSPF2-5 | 7.1 |
| Refrigerant | R-454B |
| Refrigerant Volume | 17.28 oz |
| Inverter Tech | DC Inverter |
| Phase | 1 Phase |
| Cycle | 60Hz |
| Max Fuse | 20A |
| MCA | 17A |
| Mount Type | Wall Mounted |
| Color | White |
| Zone Capacity | 1 |
| Line Set | Included |
| Line Length | 16 ft |
| Max Line Set | 82 ft |
| Line Sizes | 1/4" / 3/8" |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Indoor CFM | 312 / 235.4 / 170.7 / 135.4 |
| Indoor Sound | 18–43 dB(A) |
| Outdoor Sound | 54 dB(A) |
| Fan Speeds | 5 |
| Blower Speeds | 3 |
| Blower RPM | 1050 / 810 / 690 |
| Min Cooling | 5°F |
| Compressor Type | Rotary |
| Filter Type | Reusable |
| Fan Only | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| WiFi Control | Yes |
| App Control | Yes |
| iOS Support | Yes |
| Android Support | Yes |
| Remote Control | Included |
| Batteries | Yes |
| Electronics | Yes |
| Chemicals | Yes |
| Gas Content | Yes |
| Prop 65 | Yes |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| NEEP Listed | Yes |
| CEE Tier | Tier 1 North |
| Base Warranty | 1-Year Parts / 2-Year Compressor |
| Air Handler Net | 28.7" W × 11.5" H × 7.87" D |
| Air Handler Weight | 23.81 lb |
| Air Handler Gross | 32.68" W × 13.58" H × 16.14" D |
| Air Handler Ship Weight | 33.95 lb |
| Condenser Net | 28.35" W × 19.49" H × 10.63" D |
| Condenser Weight | 54.67 lb |
| Condenser Gross | 32.87" W × 21.26" H × 10.63" D |
| Condenser Ship Weight | 66.58 lb |
| Total Ship Weight | 100.53 lb |
Questions, answered
Everything homeowners ask before buying a MRCOOL® system.
Installation
Do I need an HVAC technician to install this?
No. MRCOOL® DIY systems are designed for homeowner installation. The pre-charged Quick Connect® line set means there's no refrigerant handling, no vacuum pump, and no special tools or license required.
How long does installation take?
Most single-zone systems go in within a few hours: mount the indoor air handler, set the outdoor condenser, connect the pre-charged line set, and power it on.
Do I need an electrician?
The system needs a dedicated circuit. Most homeowners have a licensed electrician add the breaker and disconnect — everything else you can do yourself.
Sizing & compatibility
What BTU size do I need?
As a rule of thumb: up to 400 sq ft → 9–12K BTU, 400–600 sq ft → 12–18K, 600–1,000 sq ft → 18–24K. Use the room-size guide above and factor in insulation, ceiling height and sun exposure.
Will it heat in winter?
Yes — these are heat pumps, so they heat and cool. Many MRCOOL® systems keep heating in sub-freezing temperatures; check each model's spec sheet for its low-temperature heating range.
115V or 230V — which do I need?
9K–12K units are usually 115V (standard outlet circuit); 18K and larger are typically 230V. The voltage is shown in the product options and specifications.
Warranty & support
What warranty is included?
MRCOOL® systems carry manufacturer warranty coverage — typically 5–10 years on major components when you register your system after installation.
How do I get help choosing or installing?
Email support@coolheatdirect.com — our U.S. team replies within one business day with sizing, voltage and compatibility help.
Shipping & returns
How fast does it ship?
Most products ship in 3–5 business days with free curbside delivery in the continental U.S. The freight carrier calls to schedule your delivery.
Can I return it?
Returns are accepted within 30 days on new, unopened items in original packaging. A restocking fee may apply to HVAC equipment — we always confirm before issuing a return authorization.
-
