What Comes With a MRCOOL® DIY Mini Split? Complete System & Installation Checklist

Ordering a MRCOOL® DIY mini split and wondering what actually comes with it?

It’s one of the smartest questions to ask before you buy.

A mini split installation involves more than choosing the right BTU. You also need the correct indoor and outdoor units, line set, electrical setup, drainage plan and mounting solution.

The good news is that a complete MRCOOL® DIY system bundle from Cool Heat Direct already brings together the major compatible system components—including the outdoor condenser, indoor air handler(s) and standard 25 ft pre-charged line set(s).

Some installation-specific items may still need to be selected separately.

This guide shows you exactly what’s included, what you may still need and what to check before ordering—so installation day starts with fewer surprises.

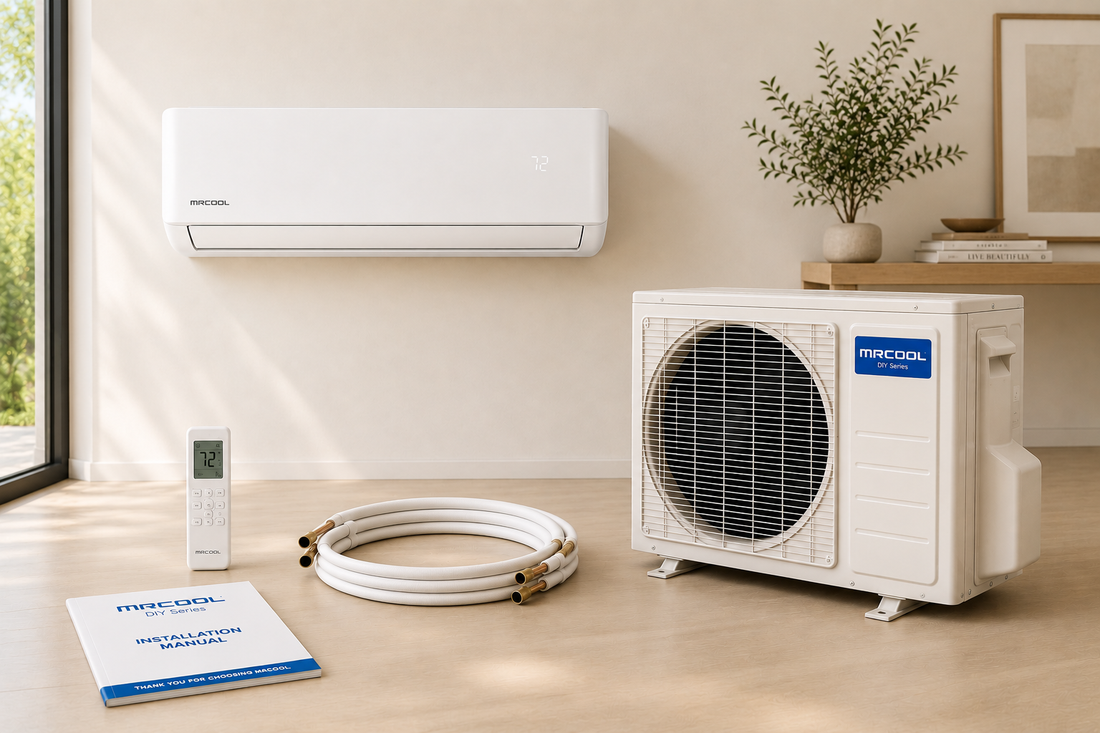

Quick Answer: What Comes With a Complete MRCOOL® DIY System?

A complete system is built around three essential components:

• Outdoor condenser

• Indoor air handler(s)

• Compatible pre-charged line set(s)

For complete Cool Heat Direct MRCOOL® DIY bundles:

Buying a complete system?

Cool Heat Direct matches the major compatible components for you. If the standard 25 ft line-set length doesn’t suit your installation, contact us at support@coolheatdirect.com before ordering and we’ll help you identify the appropriate option.

1. Outdoor Condenser

The outdoor condenser is the main external component of your MRCOOL® mini split. It works with the indoor air handler to provide heating and cooling.

With a single-zone system, one outdoor condenser serves one indoor unit.

With a multi-zone system, one compatible condenser can support several indoor units in different rooms.

The important point is that multi-zone sizing is not simply a matter of choosing a large condenser and connecting any indoor units you like.

The condenser, number of zones and indoor-unit capacities must be compatible.

That is one of the advantages of purchasing a preconfigured complete system bundle: the major components are selected to work together rather than leaving you to match them individually.

2. Indoor Air Handler(s)

The indoor air handler is the wall-mounted unit that distributes heated or cooled air into your room.

A single-zone system includes one air handler.

A multi-zone system may include two, three, four or more indoor units depending on the configuration.

For example, a three-zone system might condition:

• A primary bedroom

• A living room

• A home office

Each room can then have its own temperature setting.

Do All Indoor Units Need the Same BTU?

No.

A small bedroom may require less capacity than a large open-plan living area.

Each air handler should be sized for the room it serves while remaining compatible with the selected outdoor condenser.

This is why room-by-room sizing matters, especially with multi-zone systems.

3. Pre-Charged Line Set(s)

The line set connects the indoor air handler to the outdoor condenser.

MRCOOL® DIY systems use pre-charged Quick Connect® line-set technology, one of the key features designed to make installation more approachable for homeowners.

Is the Line Set Included?

With a complete Cool Heat Direct MRCOOL® DIY bundle, yes.

The standard 25 ft pre-charged line set(s) are included in the bundle price.

For multi-zone configurations, standard 25 ft line sets are included for the selected indoor units.

That means you won’t buy a complete Cool Heat Direct system and then discover that the standard connecting line set was missing from the bundle.

What If You Need a Different Line-Set Length?

Twenty-five feet works for many installations—but not every one.

Your indoor unit may be upstairs, the condenser may need to sit farther along an exterior wall, or the route may need to travel around corners.

So before ordering, measure the actual route the line set will follow, not just the straight-line distance between the two units.

If 25 ft isn’t suitable, contact us before ordering.

support@coolheatdirect.com

Tell us the approximate distance and system configuration, and we’ll help you identify the appropriate line-set option.

What Might You Need Separately?

A complete system bundle contains the major HVAC components, but every installation is different.

Depending on your property, you may still need:

• A condenser pad, stand or wall bracket

• A decorative line-set cover

• Electrical components

• Installation-specific tools and materials

• A different line-set length

These aren’t necessarily missing pieces—they’re installation-specific choices.

4. Condenser Pad, Stand or Wall Bracket

The outdoor condenser needs a stable location with adequate airflow, clearance and service access.

Depending on your property, it may be positioned on a ground-level condenser pad, raised equipment stand or appropriate wall bracket.

The best option depends on factors such as:

• Ground conditions

• Drainage

• Snow exposure

• Available wall space

• Required unit clearance

Because every property is different, the mounting solution is generally selected separately.

5. Line-Set Cover

A line-set cover is optional, but it can make a noticeable difference to the finished appearance of your installation.

If the line set runs down or across an exterior wall, a cover encloses it inside a neat protective channel.

It can be especially worthwhile when the installation is highly visible or the line-set run is relatively long.

Think of it as the finishing touch that can make a DIY installation look much more polished.

6. Electrical Components

Electrical requirements depend on the exact MRCOOL® model and capacity.

Your installation may require the appropriate wiring, circuit protection, disconnect and other electrical components.

This is why electrical planning should happen before the system arrives.

115V or 230V?

Some smaller mini split systems are available in 115V configurations, while larger systems commonly require 230V.

Don’t select a system simply because one voltage seems more convenient.

A better approach is:

Choose the correct BTU capacity first. Then confirm that your electrical setup can support the system you actually need.

Electrical work must comply with the manufacturer’s requirements and applicable local codes. Where required, use a qualified or licensed electrician.

7. Condensate Drainage

This part is easy to overlook.

During cooling and dehumidification, your mini split removes moisture from the indoor air. That water has to drain safely away.

Before choosing the indoor-unit location, think about:

• Where the drain line will run

• Where the water will discharge

• Whether gravity drainage is possible

• Whether the route is practical and accessible

A poorly planned drain route can contribute to leaks, odors and water damage.

A simple rule:

• Plan the condensate drain at the same time as the line-set route.

8. Do You Need Special Tools?

MRCOOL® DIY systems are designed to make installation more approachable, but DIY-friendly does not mean tool-free.

A typical project may require tools for measuring, leveling, drilling, mounting, making the wall penetration, sealing and finishing the installation.

Rather than relying on a generic tool list, review the installation documentation for your exact system before installation day.

That gives you time to identify:

• What you already have

• What you still need

• What work may require professional help

Single-Zone vs Multi-Zone: What Changes?

The core system is similar. The number of components changes.

Single-Zone

1 condenser → 1 indoor air handler → 1 line set

A single-zone system is commonly used for:

• Bedroom

• Home office

• Garage

• Workshop

• Finished basement

• Guest suite

• One large open area

Multi-Zone

1 condenser → multiple indoor air handlers → multiple line sets

A multi-zone system is designed for several separate rooms where independent temperature control is desired.

Before ordering, you’ll need to know how many rooms you want to condition, the BTU requirement of each room and the approximate line-set route for each zone.

Not Sure Which System You Need?

One room or open space?
A single-zone system is usually the natural starting point.

Several separate rooms?
A multi-zone configuration may provide the room-by-room control you need.

Unsure about BTU, compatibility or line-set length?

Email us with:

• Room size(s)

• Number of rooms or zones

• Approximate line-set distance(s)

support@coolheatdirect.com

We’ll help you narrow down the appropriate MRCOOL® DIY configuration before you order.

Before You Buy: 60-Second Checklist

Before clicking Add to Cart, confirm:

☐ Room size and appropriate BTU range

☐ Single-zone or multi-zone configuration

☐ Indoor-unit location(s)

☐ Outdoor condenser location

☐ Actual line-set route

☐ Whether the standard 25 ft line set(s) are suitable

☐ Condensate drainage route

☐ Condenser pad, stand or bracket requirement

☐ System voltage and electrical requirements

☐ Whether you want an optional line-set cover

A few minutes spent checking these details now can prevent much bigger problems later.

Frequently Asked Questions

1. Does a MRCOOL® DIY Mini Split Come With a Line Set?

Complete Cool Heat Direct MRCOOL® DIY system bundles include compatible standard 25 ft pre-charged line set(s) for the selected configuration.

Standalone components may differ, so always review the individual product listing.

2. What If I Need More or Less Than 25 Feet?

Contact us before ordering.

Tell us your system and approximate required line-set distance, and we can help you identify the appropriate option.

3. Does the System Include a Condenser Pad or Wall Bracket?

Usually not.

The best mounting solution depends on your property and condenser location, so pads, stands and wall brackets are typically selected separately.

4. Does It Include a Line-Set Cover?

A decorative line-set cover is generally optional.

It protects the visible service run and can give the exterior installation a cleaner finished appearance.

5. Do I Need an Electrician?

MRCOOL® DIY systems simplify several parts of mini split installation, but electrical requirements still apply.

Electrical work must comply with your system specifications and applicable local codes.

6. Do I Need a Vacuum Pump?

Compatible MRCOOL® DIY systems use factory pre-charged Quick Connect® line sets designed to simplify the conventional refrigerant connection process.

Always follow the installation instructions for your exact system.

7. Can I Install a MRCOOL® DIY Mini Split Myself?

The DIY® series is designed to make installation more approachable for capable homeowners.

However, installation difficulty varies depending on wall construction, electrical requirements, condenser placement, condensate drainage and line-set routing.

Some homeowners choose a hybrid approach, completing appropriate DIY steps themselves while using qualified professionals where required.

The Simple Rule:

Size → Configure → Measure → Check → Buy

This is the easiest way to avoid ordering mistakes.

Size your room correctly.

Configure the right system and number of zones.

Measure the actual installation and line-set route.

Check electrical requirements, drainage and mounting.

Then buy once you know the system suits your home.

Why Choose a Complete MRCOOL® DIY Bundle?

One of the hardest parts of buying HVAC equipment online is not deciding that you want a mini split.

It’s figuring out which components belong together.

A complete Cool Heat Direct MRCOOL® DIY bundle removes much of that uncertainty by bringing together the major compatible system components:

• Outdoor condenser

• Indoor air handler(s)

• Standard 25 ft pre-charged line set(s)

You then select the installation-specific items that suit your property, such as the condenser mounting solution, optional line-set cover and required electrical components.

• We match the core system. You customize the installation around your home.

Ready to Choose Your MRCOOL® DIY System?

If you already know how many rooms you want to condition, your next step is straightforward.

One Room or Open Space?

Explore MRCOOL® DIY Single-Zone Systems for bedrooms, living areas, garages, home offices, basements and other individual spaces.

Several Rooms?

Explore MRCOOL® DIY Multi-Zone Systems to connect multiple indoor air handlers to one compatible outdoor condenser.

Still Unsure?

Send us:

your room size + number of zones + approximate line-set distance

at support@coolheatdirect.com.

We’ll help you narrow down the appropriate configuration before you order.

Final Thoughts

The best time to discover what your mini split installation needs is before the boxes arrive—not halfway through the project.

Know the BTU capacity you need. Decide how many zones you want. Plan where the equipment will go. Measure the real line-set route. Check your electrical requirements.

Once those decisions are made, choosing the right system becomes much easier.

With a complete Cool Heat Direct MRCOOL® DIY bundle, the major compatible system components—including the standard 25 ft pre-charged line set(s)—are already brought together for you.

That means less uncertainty, fewer compatibility questions and a clearer path from choosing your system to enjoying your new heating and cooling.
