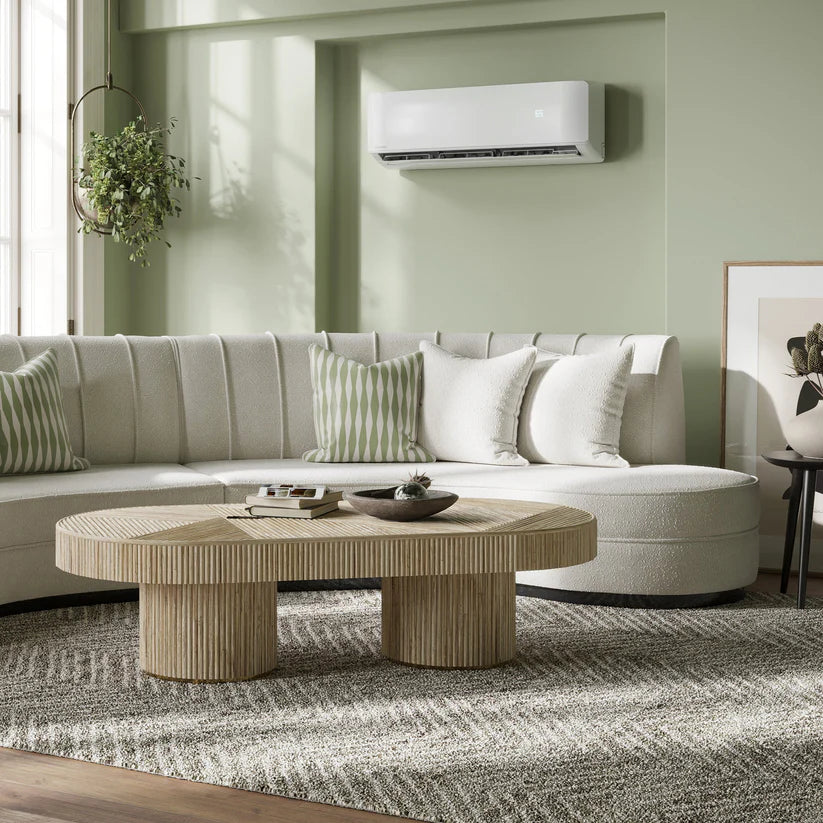

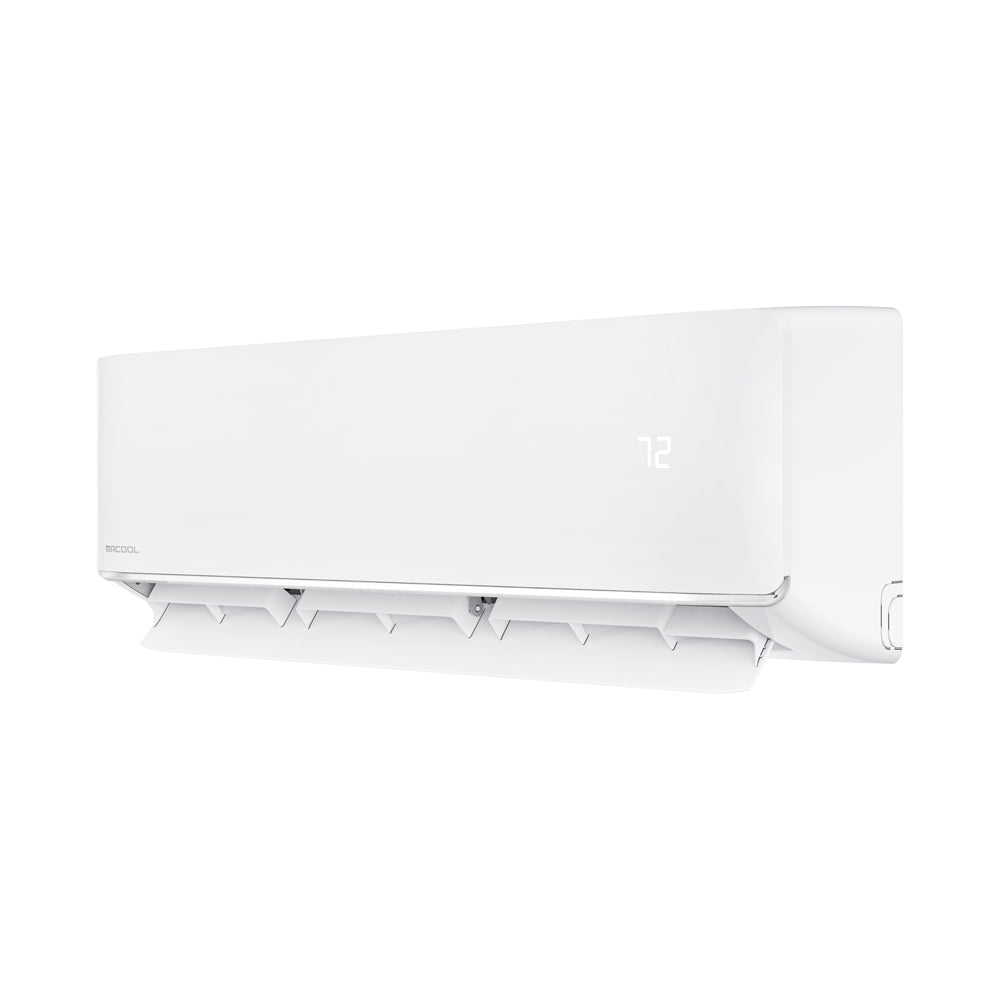

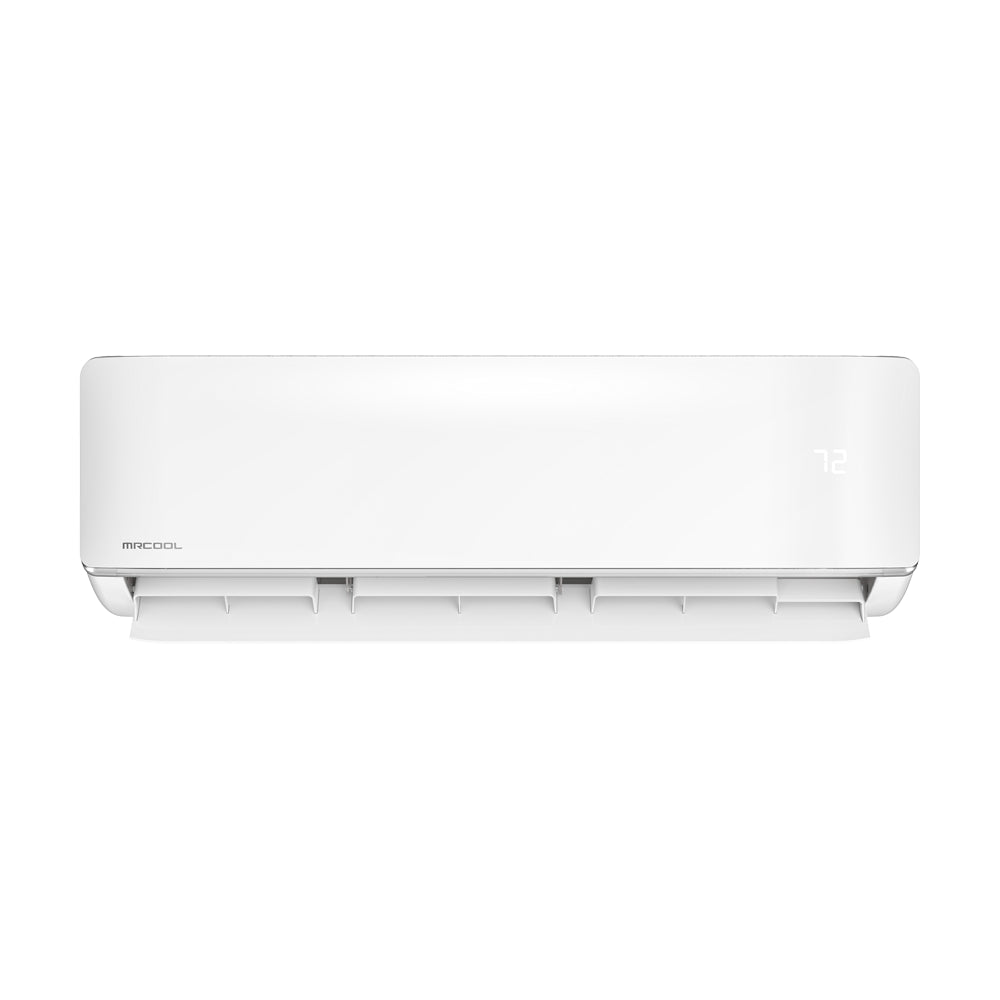

MRCOOL® 6K DIY 5th Generation Mini-Split Air Handler 230v

MODEL: DIY-06-HP-WMAH-230D25-O

Product Description

Effortless, Whisper-Quiet Comfort for Spaces up to 250 sq. ft.

The MRCOOL® 6k BTU DIY® 5th Generation Mini-Split Air Handler offers powerful performance in a compact, energy-efficient, and fully DIY-friendly design — ideal for bedrooms, nurseries, home offices, or small living spaces up to 250 sq. ft.

Elevate your home’s climate control with this ductless heat pump air handler, engineered for quick, professional-quality installation without the need for vacuum pumps, gauges, or licensed technicians. The system pairs effortlessly with your MRCOOL® DIY® 5th Gen Multi-Zone Condenser using a pre-charged 25-foot Quick Connect® line set with eco-friendly R-454B refrigerant, ensuring clean, leak-free, and cost-efficient setup.

Take full control of your comfort with a wireless remote, the SmartHVAC® app, or voice commands via Amazon Alexa and Google Assistant. Integrated Follow Me® technology ensures the air handler adjusts the temperature based on your location for perfectly personalized comfort.

Engineered for long-term reliability, this unit features a Gold Fin® condenser coating for superior corrosion resistance and is backed by some of the best warranties in the industry — including a Limited Lifetime Compressor Warranty (with registration), 7-Year Compressor, and 5-Year Parts Warranty.

From Dry Mode humidity control to ultra-quiet operation, this sleek, modern unit delivers efficient, year-round heating and cooling with zero hassle — making it one of the most convenient, energy-saving, and accessible DIY mini split air handler options available.

Why You’ll Love It

✅ Compact, Wall-Mounted Comfort — Perfect for small bedrooms, home offices, nurseries, and compact studio spaces.

✅ Simple DIY Installation — Pre-charged Quick Connect® lines and included 25ft DIYPro™ Communication Cable mean no vacuuming, gauges, or licensed HVAC professional required.

✅ Smart-Home Ready — Wi-Fi enabled for full control via the SmartHVAC® app, Amazon Alexa, or Google Assistant.

✅ Follow Me® Temperature Technology — Automatically adjusts based on your exact location for personalized comfort.

✅ Ultra-Quiet Operation — Operates between 26.5 and 39.5 dBA for whisper-quiet performance.

✅ Gold Fin® Protection — Corrosion-resistant condenser extends system life and durability.

✅ Year-Round Efficiency — Cools down to 5°F and heats up to 86°F, perfect for all-season comfort.

✅ Industry-Leading Warranty — Includes Limited Lifetime Compressor Warranty (with registration), 7-Year Compressor, and 5-Year Parts Warranty.

What’s Included:

MRCOOL® 6K DIY® 5th Gen Mini-Split Air Handler
25ft DIYPro™ Communication Cable
Wireless Remote Control
Installation Accessories
MRCOOL® Warranty

Specifications at a Glance

Attribute	Details
Voltage	208/230V
Phase	1
Cycle	60 Hz
Mount Type	Wall-Mounted
Color	White
Max Coverage Area	200 sq. ft.
Oscillation	Yes
Filter Type	Reusable
Auxiliary Heater	Not Included / Not Available
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
Wi-Fi Enabled	Yes
App Compatibility	iOS & Android
Remote Included	Yes
Batteries Included	Yes
UL/ETL Listed	Yes
AHRI Certified	Yes
Warranty	Lifetime Limited*, 7-Year Compressor, 5-Year Parts
Net Dimensions (WxHxD)	31.57" x 11.69" x 7.44"
Gross Dimensions (WxHxD)	36.02" x 14.37" x 16.34"
Net Weight	24.47 lbs
Gross Weight	35.05 lbs
Contains Electronics / Chemicals / Compressed Gas	Yes
Proposition 65 Warning	Yes

Installation & Guides

Product Brochure

Installation Manual

Remote Control Manual

Warranty Document

Room Size & BTU Coverage Guide

Choosing the right BTU (British Thermal Unit) output ensures your space stays consistently comfortable all year round. Use this quick reference chart to match your room size with the recommended cooling and heating capacity.

BTU Rating	Ideal Room Size (Approx.)
6,000 BTU	Up to 250 sq. ft. – great for small bedrooms, offices, or nurseries
9,000 BTU	250 – 400 sq. ft. – ideal for standard bedrooms or compact living rooms
12,000 BTU	400 – 600 sq. ft. – suitable for master bedrooms or mid-size areas

Important: Always consider additional factors like ceiling height, insulation, sun exposure, and the number of heat-generating appliances when selecting your system. Still unsure? Our experts are just a message away to help guide you.

What You Need for a Complete System

For full heating and cooling performance, pair this indoor air handler with:

MRCOOL® DIY® 5th Gen Multi-Zone Condenser — Powers your climate control system by transferring heat outdoors for reliable heating and cooling.
MRCOOL® Quick Connect® Pre-Charged Line Set — Connects the air handler to the condenser with pre-charged refrigerant for easy, mess-free installation.
DIYPro™ Communication Cable (25ft included) — Provides secure, efficient communication between the air handler and condenser.

Optional Accessories:

MRCOOL® Wall Mount Bracket
Additional Quick Connect® Line Sets (for extended distances)
Coupler Kits (if line set extension is needed)

Important:

This air handler is not a stand-alone unit. It requires connection to a compatible MRCOOL® DIY® 5th Gen Multi-Zone Condenser for full operation.
It is not compatible with 3rd or 4th Generation MRCOOL® systems.
